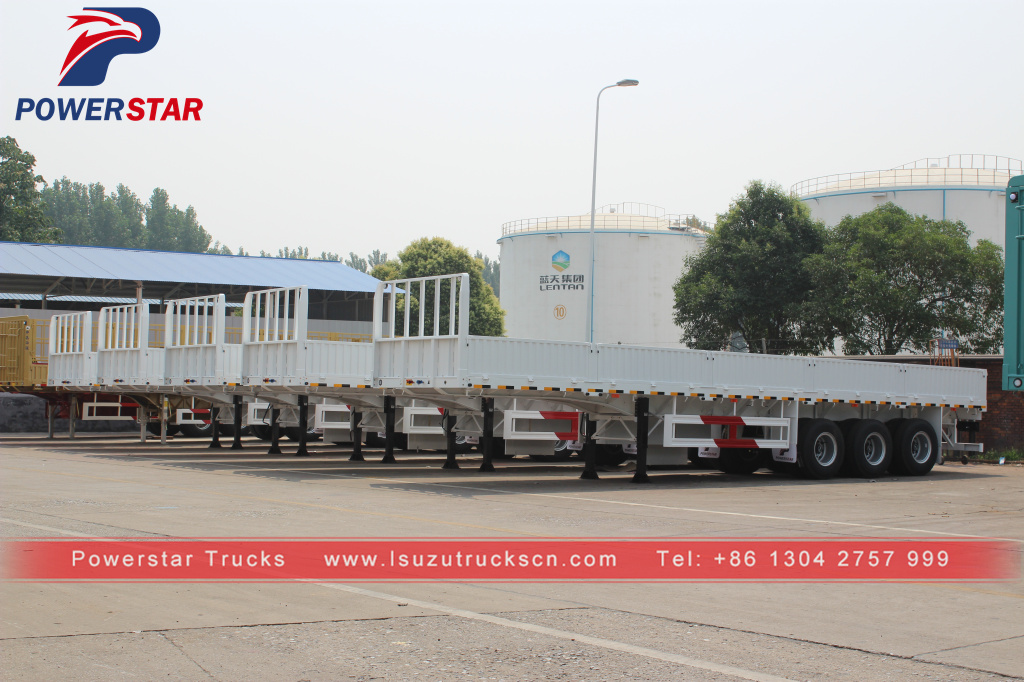

we produce Powerstar BRAND side wall semi trailer,three axles drop side semi trailer , semi trailer manufacture,600mm height side wall semi trailer,semi-trailer supplier,cargo traielrs for sale, 40ft side wall semi trailer ,truck trailer for sale ,heavy duty semi trailer ,semi-trailers ,cheap semi trailer for sale .
POWERSTAR BRAND semi trailer export to Russia , Africa ,Saudi Arabi,South America and Pakistan ,Whole Aisa market
Tare Weight
|
About 7.6T
|
Dimension
|
13000mm*2490mm*2860mm
|
Loading Capacity (T)
|
≤ 60 T
|
Axle
|
13 T/16T, FUWA /BPW /Huajing Brand
|
Rim
|
9.00-22.5 8.5-20
|
Tire
|
12.00R22.5/ 315 80R22.5 11.00R20
|
Suspension
|
Mechanical suspension (Germany Type or America Type)
Or Air suspension (China brand or BPW brand )
|
Spring leaf
|
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
|
King pin
|
JOST brand 2.0 or 3.5inch bolts type or Welding type
|
Support leg
|
JOST brand D200T or China brand 28Tons (Double speed)
|
Main beam
|
Height: 500mm, upper plate is 14mm, middle plate is 8mm,
down plate is 16mm ; Material is Q345B Steel .
|
Side beam
|
16mm or 18mm channel steel ( Material is Q235steel ).
|
Side Wall
|
600mm-1500mm ，or can be do box type ,for choose
|
Brake chamber
| |
ABS
|
Optional
|
Twist Locks
|
Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional
|
Valve
|
WABCO valve
|
Light
|
LED light
|
Voltage
|
24V
|
Receptacle
|
7 ways (7 wire harness)
|
Tool box
|
One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
|
Painting
|
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
|
Shipping Terms:
|
By bulk cargo carrier, RORO or 40HQ container.
|
