Description:
The Isuzu Fuel Tank Truck Series is normally transport the gasoline, diesel, kerosene etc. and some other liquid fuel materials which do not corrode the oil pump and fiscal ECR.
This model results the equipment with few positive points as: good performance, good structure, also operates simply.
Areas of Application and Use:
◆ Gasoline transport and delivery
◆ Diesel transport and delivery
◆ Kerosene transport and delivery
◆ Other liquid fuel material
◆ Mobile refueling vehicle of Filling stations
Key Features:
◆ World-class ISUZU heavy duty Chassis, High power and Fuel efficiency, Reliability, Uptime
◆ High-power, Lighten weight, Nice performance, widely used in oil station and some logistic companies
◆ We use OEM fittings, makes the tanker solid and durable, and reduce the cost to operate and maintain.
◆ The liquid tanker is produced with the special equipments such as automatic welding machine(8m) and CNC plasma cutting and automatic submerged arc welding forming which can realize welding by one side in shape by two sides, having the merits of stable quality, less cost, and good-looking.
◆ Carbon Steel, Stainless Steel, and Aluminum Tanks Available
◆ Colors can be customized.
◆ Tank capacity can be customized. 5000L to 25000Liters
Main specifications:
PT5100GJY
| ||
Driving Type
|
4x2 (Left hand drive)
| |
Wheelbase
|
4175 mm
| |
Engine
|
139 kw (190hp)
| |
Tyre
|
8.25-20
| |
Tank
|
Material:
|
Carbon steel(Q345)
|
Shell Body
|
5 mm nominal thickness
| |
Head
|
6 mm nominal thickness
| |
Baffles
|
3mm nominal thick, wave shape, four pieces with Ø 500mm service port
| |
Tank shape
|
Ellipse
| |
Capacity
|
Full capacity 7000L
| |
Compartment
|
No
| |
Shell Finish
|
Shot blasted with 1anti-rust, 1 base coat and 1 finishing coat, the color of tank is according to customer requirement.
| |
Testing Pressure
|
36kPa, Water pressure test
| |
Tank Fittings
|
Top inlet port
|
2pieces
|
Manhole Cover
|
Aluminum alloy, 20” self-latching manhole cover, with air-van.
| |
Outlet port:
|
One pneumatic sea valve which at the front of tank, the size of outlet port is 3 inches, fix all connector.
| |
Pipe box:
|
It made of PVC material, round shape which on the both sides of tank, one plastic pipe (5m)
| |
Anti –Static System:
|
Static electricity plate , copper plate and earth cable reel
| |
Tank Accessories
|
Ladder:
|
Stainless Steel ladder fixed at rear of tank
|
Walkway Platform:
|
It fixed on the top of tank with anti – skid surface treatment.
| |
Handrail:
|
No
| |
Fire Extinguisher Housing:
|
2 units, suitable for 4 kg’s fire extinguisher
| |
Pump Device
|
Yes
| |
Flow meter
|
Yes
| |
Tool box
|
Small box
| |
Color
|
As option
| |

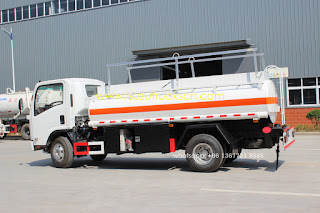

Details of ISUZU Fuel Tank Truck:
