1. Technical parameters of the ISUZU water tank trucks .

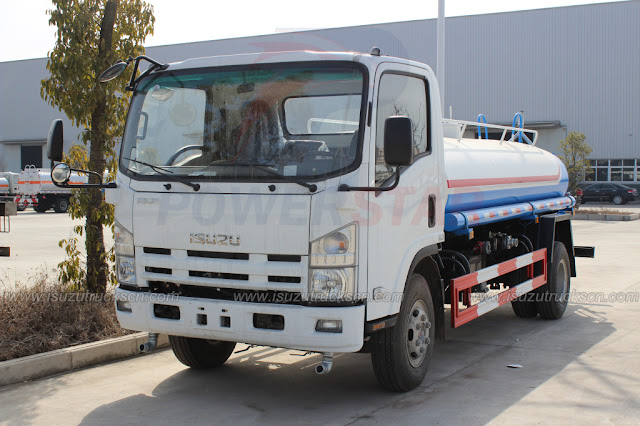

ELF ISUZU 4x2 water truck, water bowser, water tanker for sale
Main
specifications:
|
PT5100GJY
|
||
|
Driving
Type
|
4x2 (Left
hand drive)
|
|
|
Wheelbase
|
4175 mm
|
|
|
Engine
|
139 kw (190hp)
|
|
|
Tyre
|
8.25-16
|
|
|
Tank
|
Material:
|
Carbon steel(Q345)
|
|
Shell Body
|
4 mm nominal thickness
|
|
|
Head
|
5 mm nominal thickness
|
|
|
Tank shape
|
Ellipse
|
|
|
Capacity
|
Full capacity 6000L~8000L
|
|
|
Compartment
|
No
|
|
|
Shell Finish
|
Shot blasted with 1anti-rust, 1
base coat and 1 finishing coat, the color of tank is according to
customer requirement.
|
|
|
Testing Pressure
|
36kPa, Water pressure test
|
|
|
Tank Accessories
|
Ladder:
|
Stainless Steel
ladder fixed at rear of tank
|
|
Walkway Platform:
|
It fixed on the top of
tank with anti – skid surface treatment.
|
|
|
Handrail:
|
No
|
|
|
Fire Extinguisher Housing:
|
2 units, suitable for 4 kg’s fire
extinguisher
|
|
|
Pump Device
|
Yes
|
|
|
Flow meter
|
Yes
|
|
|
Tool box
|
Small box
|
|
|
Color
|
As option
| |
