Isuzu 5tons NPR Refuse compactor (Garbage compactor truck)



Isuzu NPR Refuse compactor (Garbage compactor truck)

picture of Isuzu NPR Refuse compactor (Garbage compactor truck)

Basic Description

Isuzu NPR Refuse compactor also called as Isuzu compression refuse collector, Garbage compactor vehicle, Isuzu brand waste compactor truck.
The new generation ISUZU Refuse Garbage Compactor is mainly used in collecting and transporting the scattering refuse of the urban area, community, factory, school yard.
The refined appearance, the fully sealed truck body, the sealed door of the truck body is able to prevent the sewage from leaking during transporting so that secondary pollution is avoided. The imported hydraulic units are of the best quality with convenience and reliability.

Key Features

   ISUZU NPR Chassis, Durable & Performance.
   Imported PLC (programmable logic controller) for integrated control
   400L Sewage water tank, preventing re-pollution.
   Automatic and Manual operating control, improving operation reliability.
   Different bin (Hopper) can be optional
   POWERSTAR 20 years’ experience on Garbage compactor truck exporting.

Technical drawing for Isuzu NPR Refuse compactor (Garbage compactor truck)
Working Principles of ISUZU Truck Garbage Compactor
8Cubic meter ELF ISUZU Refuse Truck Compactor

Main specifications

Parameter
Truck Model
PT5100ZYS
Compression Tank Parameter
Tank Capacity
8CBM~10CBM
Tank Material
Carbon Steel Q235 (Q345 for optional)
Tank Shape
Curved Shape Tank
(Square shape for optional)
Overall dimension (mm)
Length
7450
Width
2350
Height
2800
Tank Thickness
Side
4mm
Floor
4mm
Chassis
Chassis Brand
ISUZU NPR/ELF/700P/NQR
Drive Mode
4x2
Tire type
8.25-16 tire
Tire No.
6+1 units
Max speed
95 km/h
Cab
1.    Flat roof, All-steel-welded construction
2.    spring suspensions with hydraulic shock absorbers
3.    Air condition
4.    2 seats 1-DIN AM/FM CD/MP3 Player
Engine
Power
190Ps / 139 kw
Fuel type
diesel
Emission Standard
Euro 4
Gearbox
Control type
Manual
Gear
6 forward & 1 reverse
Powerstar Compactor Trucks Loading Introduction


HOT sale Isuzu Trucks
 Isuzu Fuel Tank Truck Excellent Quality for Africa Market 8000L ISUZU NPR refueling tanker trucks Isuzu ELF water fire fighting trucksIsuzu ELF water fire fighting trucks
 Isuzu foam fire vehicle for export Japan Isuzu water foam fire fighting tender fire engine Philippines custom made 5tons street cleaning sweeper truck Isuzu Japan high performance Isuzu sweeping vehicle
 5tons city used garbage compactor truck Isuzu trucks Japan quality Isuzu rubbish compactor trucks Customized 5tons Isuzu trucks mounted crane for sale Africa ghana order Isuzu heavy duty truck with crane
 Japan 16Meters Isuzu Aerial plaftform trucks Isuzu Water Jetting high pressure truck for sale Isuzu 3tons flatbed tow wrecker trucks Customized fuel oil tanker semi trailer made in china

Garbage compactor workshop:
Isuzu NPR Refuse compactor (Garbage compactor truck)
Isuzu Garbage compactor truck workshop factory

Overview of Isuzu NPR Refuse compactor:
 Overview of Isuzu NPR Refuse compactor truckOverview of Isuzu NPR Refuse compactor truck
 Overview of Isuzu NPR Refuse compactor truck Overview of Isuzu NPR Refuse compactor truck
 Overview of Isuzu NPR Refuse compactor truck Overview of Isuzu NPR Refuse compactor truck

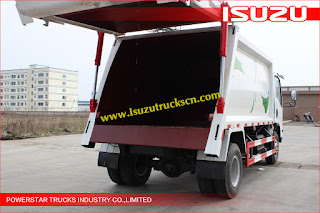

Isuzu refuse compactor garbage trucks with 240L garbage bin hopper
Two 240L plastic garbage bins at same time for Isuzu rubbish compactor truck

Isuzu NPR Refuse compactor (Garbage compactor truck)
Two 240L plastic garbage bins at same time for Isuzu rubbish compactor truck

Isuzu NPR Refuse compactor (Garbage compactor truck)
Two 240L plastic garbage bins at same time for Isuzu rubbish compactor truck

Control panel for Isuzu refuse compactor garbage trucks
Control panel for Isuzu refuse compactor garbage trucks

Operation manual for Isuzu refuse compactor garbage trucks
Operation manual for Isuzu refuse compactor garbage trucks

Read for Shipment:
Shipment for Isuzu refuse compactor truck garbage collector
 Isuzu waste compactor vehicle Leave Powerstar Truck factory
Shipment for Isuzu refuse compactor truck garbage collector
 Isuzu waste compactor vehicle Leave Powerstar Truck factory

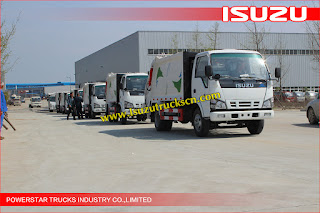

Isuzu trucks garbage compactor truck shipment to Myanmar
Our Quality Isuzu compression garbage truck ship to Worldwide
Isuzu trucks garbage compactor truck shipment to Myanmar
Our Quality Isuzu compression garbage truck ship to Worldwide
