Waste compactor truck Isuzu garbage truck 3tons capacity

Garbage compactor truck Isuzu 3tons

Function:

Garbage compactor truck Isuzu 3tons (also called as refuse compactor, waste collection truck, trash compactor truck, refuse collection truck, narrow garbage truck, city garbage compactor vehicle)  is widely used in daily rubbish transport in such living areas as all kinds of cities, large station, port and whart, airpot and densely-populated areas like industrical and mineral enterprises and military units.

All our compressed garbage truck optional hanging bucket or barrel tilting mechanism, automatic operating, simple and efficient garbage collection. It can be converted into various special garbage truck according to clients' special requirement.

Features:

---- ISUZU chassis, perfect performance.
---- Compression ration > 60%
---- Compression body capacity from 3 CBM TO 20 CBM
---- Sealed transportation avoid the second time pollution
---- Massive, durable, perfect performance

Specifications:



Garbage Compactor Isuzu (3 Tons)
General	Vehicle Brand	POWERSTAR
	Chassis Brand	ISUZU
	Overall Dimension	6130 * 2000 * 2490 mm
	GVW / Kerb Weight	8,000kg / 4,890kg
Cab	Cab Capacity	2 persons allowed
	Air Conditioner	Heating/cooling air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU
	Power	120 HP (88 KW)
	Displacement	2999 ml
	Emission Standard	Euro IV or V
Chassis	Drive Type	4X2, (left hand drive)
	Transmission	ISUZU MSB 5 speed levers with 1 reverse
	Wheelbase/No. of axle	3360 mm / 2
	Tire Specification	7.00-16
	Tire Number	6 tires and 1 spare tire
	Max Speed	95 km/h
	Paint	Metallic paint
Superstructure	Body Capacity	3 Tons
	Fill Hopper Capacity	0.8 m3
	Sewager Tank volume	200 L
	Body Material	Weather resisting steel
	Filling work cycle time	20~25 s
	Filling lift time	6~9 s
	Filling lift capacity	8 Tons
	Discharge time	18~22 s
	Max compression force	12 Tons
	Discharge model	Horizontal Ejection
	Control	Electrically Hydraulic control Manual Hydraulic control
	Emergency Stop Button	Hopper Both Sides
	All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
Optional	** Backup alarm can be equipped. ** Camera can be equipped. ** Operation language can be English or Appointed language.



Working Principles of Garbage Compactor

Different bin optional:

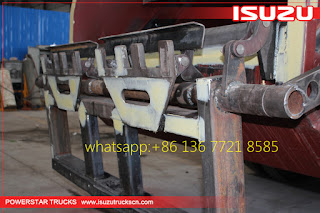

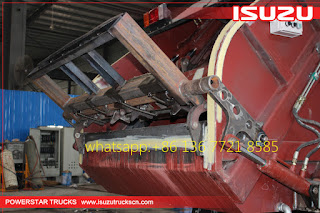

Detail pictures:
