Customer made ISUZU Water Trucks

Product Introduction ISUZU Water Spraying Truck is mainly used in the city road washing , and the greening of trees, green belt and lawns and the washing of street, factories and mines and high buildings. It has the function of spraying, dedusting, high/low spraying, pesticide spraying and guardrail washing and also water delivery, water draining and emergency fire proof. It can add advanced equipments like medicine spraying disk, medicine pump, corrosion and rust proof, high pressure medicine spraying equipment, non-vehicle pump power, multiple direction water in and out junction, solenoid valve, pneumatic valve and alarm light to meet different requirements from customers. Performance And Features The tank is manufactured by automatic production line with the processes of blanking, automatic welding, head forming and tank roll forming ect. deomestic advanced technology. The tank is made of 4.0 carbon steel plate. There is a connector left in head, where could observe water level. Tank shapes are oval shape, circular shape and square shape.

Water sprinkler Isuzu (also called water sprinkler truck, water tanker truck, water bowser, water bowser, water tank truck, mobile water truck, water tank vehicle, water lorry, water ruck ) is produced for transportation and distrubition of industrial and drinking water, spraying and washing of streets and tunnels,  dust and environmental control and  fire-fighting purposes. In order to achieve those different operations , each water tanker truck is equipped with various features and it’s designed according to capacity of the carrier vehicle.

Areas of Application and Use

• Transportation and distrubition of drinking water
• Transportation and distrubition of industrial water
• Pressurized street and road cleaning
• Pressurized tunnel cleaning
• Dust and environmental control
• Fire fighting service

Features:

---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Water pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
---- Prolonged service life

Specification:

Water Truck Tanker ISUZU (4,000 litres)
General	Vehicle Brand	POWERSTAR
	Chassis Brand	ISUZU
	Overall Dimension	5980 * 1900 * 2200 mm
	GVW / Kerb Weight	7,300 kg / 3,620kg
Cab	Cab Capacity	3 persons allowed
	Air Conditioner	W/ air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU engine, 4KH1
	Power	98 Hp (72 KW)
	Displacement	2777 ml
	Emission Standard	Euro IV
Chassis	Drive Type	4X2, left hand drive
	Transmission	ISUZU gear box, no overhaul within 500,000km
	Wheelbase/No. of axle	3360 mm / 2
	Tyre Specification	7.00-15
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	98 km/h
	Paint	Metallic paint
Superstructure	Tank Capacity	4,000 Litres ( About 1,050 gallons)
	Tank Material	Carbon steel
	Flow Speed	1000 litres / min
	Delivery Head	45 m
	Suction Head	6 m
	Hose	High quality PVC hose, anti-aging
	All other standard accessories: manhole, ladder, inlet, discharge…….
Optional	** Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body.





Recently Built Water Tank Truck:

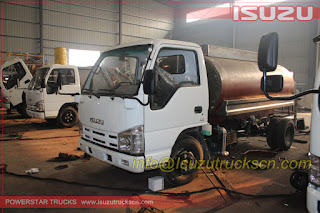

Pictures for Water Truck Tanker ISUZU (4,000 litres)

Pictures for Water Truck Tanker ISUZU (4,000 litres)

Pictures for Water Truck Tanker ISUZU (4,000 litres)

Pictures for Water Truck Tanker ISUZU (4,000 litres)

Pictures for Water Truck Tanker ISUZU (4,000 litres)



How to works of our Isuzu water tank truck?
