Bulk cement trailer by Powerstar trucks

Bulk Cement Trailer (35m3)

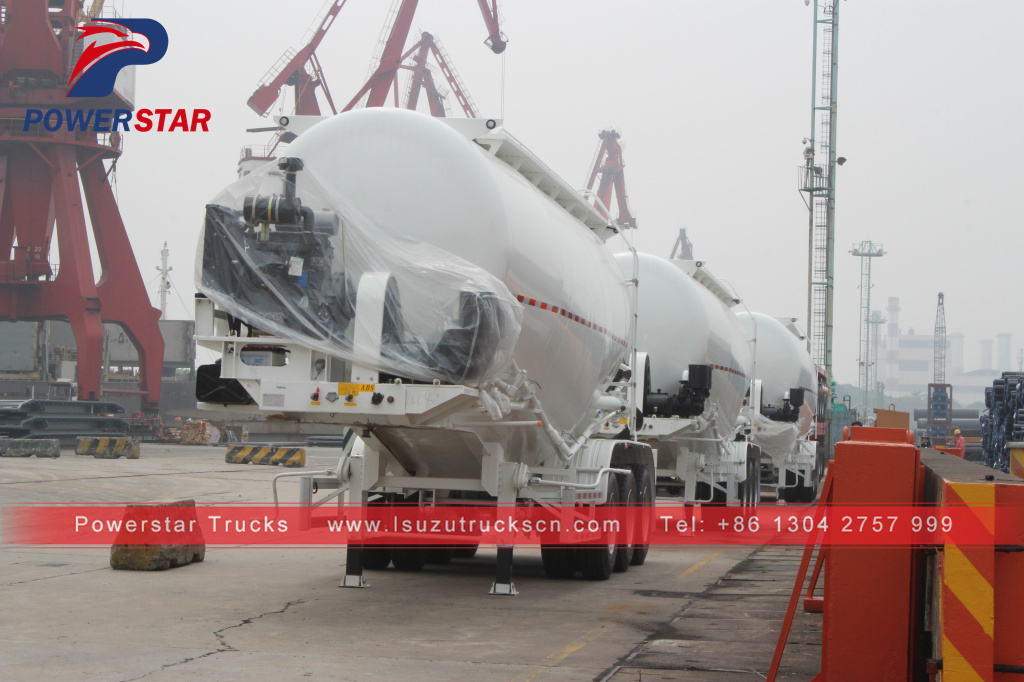

35CBM bulk cement powder tanker semi trailer


Bulk cement trailer (also called as Cement trailers, Cement tank trailer, Cement flour tank trailer, Silo trailer, bulk powder tanker trailer, bulk trailer and so on), Capacity of this trailer is between 30-70 Cbm.

Application:
CEMENT TRAILER Self Loading is used for carrying cement, lime, flour or any other dry powder materials in bulk and it has ability to load the material by itself without need of any other loading machine. We use China famous brand Vacuum motor for loading operation.

Technical drawings of 35m3 Bulk Cement Trailer:
 Bulk Cement Trailer (35m3) technical drawing
 Key Features:
1,  Thispowder tanker semi-trailer comes with a 35m3 lifting tank. The volume can be tailor-made based on specific requirements.
2,  For the powdery chemicals tanker semi-trailer, we have designed a special high-temperature resistant fluidized structure. A national patent has been obtained for the high-temperature resistant design. Due to the special design, 90% of goods can be dumped when the truck cabinet lifting degree reaches 15°. The rest 10% will be completely unloaded within 4 to 5 minutes.
3,  In stark contrast to the conventional power truck, this powder tanker semi-trailer is featured by light weight, low gravity center, fast unloading speed with less residue, easy maintenance, etc.

 Bulk Cement Trailer (35m3) technical drawing    Bulk Cement Trailer (35m3) technical drawing
 Bulk Cement Trailer (35m3) technical drawing    Bulk Cement Trailer (35m3) technical drawing




Parameters of Bulk Cement Trailer 35m3
Tank Body
Shape
One v-shaped silo, double silo, or triple silo design
Dimension
10066mm×2500mm×3900mm  (The exact size depends on the final design. )
Tare Weight
8740 kg
Tanker capacity (m3)
35 m3
Tanker Body Material
5mm or 6mm/ Q235 carbon steel
End Plate
5mm or 6mm /Q235 carbon steel
Rated pressure (Mpa)
0.2
Vertical delivery height (m)
15
Horizontal delivery distance (m)
≥5
Discharge speed (t/min)
≥1.2
Discharge residue rate (%)
≤0.3


Special Configuration
Diesel Engine
WEICHAI, Tianhe 4100/4102 or other brands
Air Compressor
Famous brand 8 m³/10/12 m³or other brands
Manhole Cover
Carbon steel or Aluminum 500mm(Diameter)
Discharging Valve
Diameter is 3 or 4 inch Material: Aluminum
Discharging Pipe
3 or 4 inch rubber hose, 1pcs, 6m/each
Cat Walk
With (Common model or special design)
Pressure water tank
Optional
Chassis
Main Beams
Welded design, Q345 carbon steel
Axle
2 or 3 axles, 12T/13T/16T, BPW/FUWA/HUAJING brand
Landing Gear
JOST (D200T) or CHINA BRAND 28T
King Pin
JOST 2.00 or 3.5 inch bolt-in king pin
Suspension
Mechanical suspension/Germany or America type /Air Suspension
Leaf Spring
90(W)mm×13(Thickness)mm×10 Layers or 100mm×12mm×12 layers
Pneumatic Braking System
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber (TKL brand); 45L air tank
Rim
9.00-22.5/8.00-20/8.5-20 Chinese Brand
Tire
12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional
ABS
Optional
Semi Trailer Surface Coating
Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
Accessories
One standard tool box
Shipping Terms
By bulk cargo, RORO
