Function:
Water lorry truck ISUZU (also called water lorry tanker, water tank bowser, water sprinkler truck, water spray truck, water tank truck, water tank, water bowser, water transport truck, water sprinkler truck, water tank vehicle, truck mounted water tanker) is produced for transportation and distrubition of industrial and drinking water, spraying and washing of streets and tunnels, dust and environmental control and fire-fighting purposes. In order to achieve those different operations , each water tanker truck is equipped with various features and it’s designed according to capacity of the carrier vehicle.
Areas of Application and Use
- Transportation and distrubition of drinking water
- Transportation and distrubition of industrial water
- Pressurized street and road cleaning
- Pressurized tunnel cleaning
- Dust and environmental control
- Fire fighting service
Features:
---- Nice shape, rational structure
---- Water pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
---- Prolonged service life
---- Water pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
---- Prolonged service life
Specification:

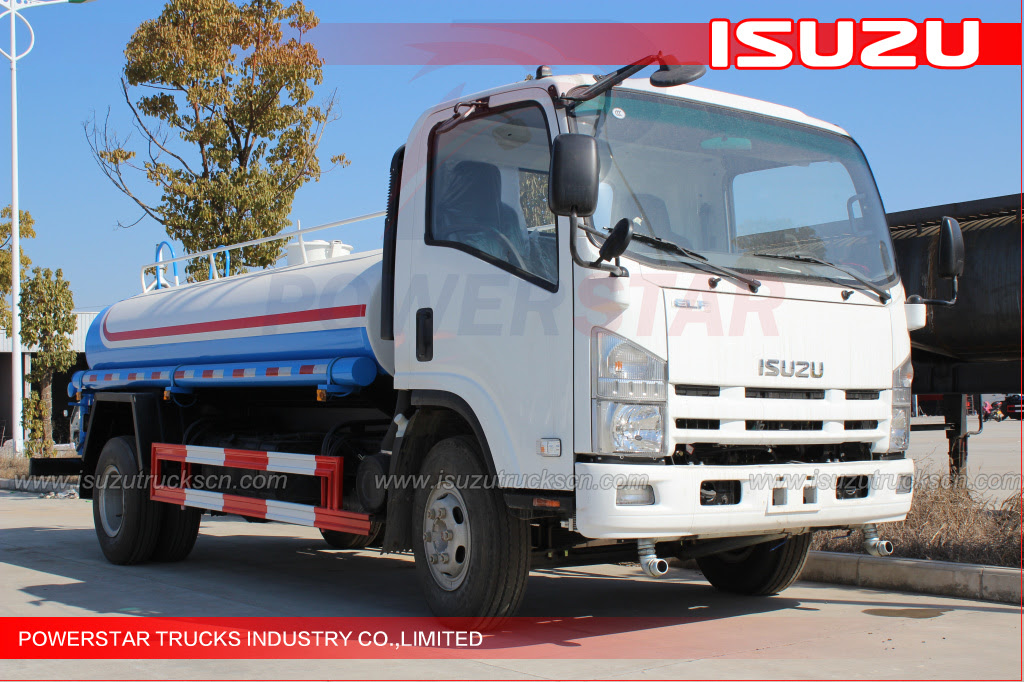

| Water Sprinkler Truck ISUZU (8,000 litres) | ||
| General | Vehicle Brand | POWERSTAR |
| Chassis Brand | ISUZU ELF NPR 700P | |
| Overall Dimension | 8550 * 2490 * 3400 mm | |
| GVW / Kerb Weight | 16,000 kg / 6,005kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Air conditioner is optional | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU 4HK1 | |
| Power | 190Hp (140KW) | |
| Displacement | 5200 ml | |
| Emission Standard | Euro 4 | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | ISUZU MLD 6-speed front, 1 reverse | |
| Wheelbase/No. of axle | 4700mm / 2 | |
| Tyre Specification | 8.25-20 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 8,000 Litres ( About 2,100gallons) |
| Tank Material | Carbon steel | |
| Flow Speed | 60 m3/hour, 1000 litres / min | |
| Delivery Head | 90 m | |
| Suction Head | 6 m | |
| Hose | High quality PVC hose, anti-aging | |
| All other standard accessories: manhole, ladder, inlet, discharge……. | ||
| Optional | ** Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body. | |
Recently Built Water Tank Truck:
 |  |
| Front Left view | Front right view |
 |  |
| Left side view | Right side view |
 |  |
| Front side view | Rear side view |
 |  |
| Rear left view | Rear right view |
Rear woking platform
Water pump
HOT sale Isuzu Trucks
 |  |  |  |
 |  |  |  |
 |  |  |  |
 |  |  |  |
Similar Key Words: Isuzu water trucks, water spray truck Isuzu, water hauling truck, water sprinkler, stainless steel water tanker, ELF water tank truck, water bowser
