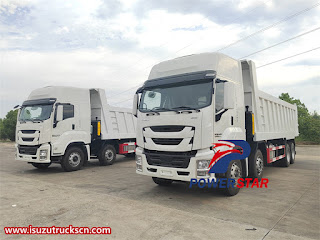

Isuzu 40T mining dump truck

 The Isuzu 40T mining dump truck is a heavy-duty vehicle designed to meet the demanding needs of mining and construction sites. Its sturdy chassis, powerful engine and wide bed make it an essential tool for transporting large quantities of minerals and rocks. The truck's excellent stability and maneuverability make it an ideal choice for mining operations. With its durable structure and reliable performance, the dump truck is an excellent investment for any mining company looking to improve operational efficiency and productivity.

Isuzu 40T mining dump truck also called Isuzu GIGA 8x4 mining dump truck,Isuzu GIGA vc66 mining dumper truck,Isuzu GIGA 40 tons 8x4 mining transport truck,Isuzu vc66 heavy duty mining tipper truck,Isuzu GIGA 12 wheels mining tipper lorry truck.

In the rugged world of mining, the Isuzu 40T Mining Dump Truck is a sturdy companion, designed to handle the toughest terrains and heaviest loads the mining industry is likely to encounter. Built on the powerful Isuzu 8x4 Giga VC66 chassis, this robust vehicle embodies durability, performance and reliability in the toughest working conditions.

The Isuzu 40T Mining Dump Truck features an Isuzu 8x4 Giga VC66 chassis, showcasing a rugged design that can withstand the rigors of mining operations. With a dump body capacity of 40 tonnes, the truck is designed for efficient transport of large volumes of mining material such as coal, ore or gravel. The ergonomic design ensures that loads are dumped quickly and accurately, increasing productivity on the mining site.

Isuzu 40T mining dump truck
Truck Model		PT5400GWT
Dimensions	Length (mm)	10300
	Width (mm)	2540
	Height (mm)	3950
	Wheel Base (mm)	1850+4575+1370
Weight	Vehicle Curb Weight (kg)	17500
	GVW  (kg)	41000
	Rated loading capacity (kg)	22500
Performance	Max. Speed (km/h)	90
	Max. Grade Ability (%)	30
	Min. Ground Clearance (mm)	314
Core Equipments Specifications
Engine	Model	ISUZU 6WG1-TCG61
	Rated Power (HP/KW)	460HP/338KW
	Type	6-cylinder in line, 4-stroke, water cooling, with turbo charging and inter-cooling
	Displacement	15681ml
	Maximum Torque	2250 N.m
	Emission Standard	EURO VI
	Fuel Type	Diesel
Transmission	Model	12JSDX240TA
	Type	Manual
	Speed	FAST 12 speed
Front Axle	Load(kg)	7500*2
Rear Axle	Load(kg)	26000
Suspension	Type	Leaf spring
Brake System	Type	Drum
	Service	Dual-circuit air
	Parking	Spring
Standard Equipments Specifications
Driver's Cab.	Type	ISUZU GIGA High roof cab, 2 seats+1 bed,
	Equipment	central lock,electric glass,air seats
	Air conditioner	Air condition
Fuel Tank	Capacity (L)	600,  Aluminium Alloy
Wheel&Tire	Type & Size	315/80R22.5,13 PCS
Dump box	Dimension in MM	Wanb Front lift cylinder,7500*2500*1800MM,bottom 8mm,side 6mm
	Loading Capacity	40 tons
Color	According to client's request

The Isuzu 40T Mining Dump Truck is a heavy-duty vehicle designed for mining and construction sites. It features a rugged Isuzu 8x4 Giga VC66 chassis that provides excellent stability and durability even in the most challenging conditions. Designed to handle large quantities of minerals, rocks, and other materials, this dump truck is an essential tool for mining operations.



Isuzu 40T mining dump truck

The Isuzu GIGA 40T mining dumper truck is powered by a powerful engine that delivers high torque and horsepower, allowing it to easily transport heavy loads. The engine is designed to be fuel-efficient, helping to reduce operating costs and minimize the environmental impact of mining operations. The truck's drivetrain is also optimized for heavy-duty use, providing smooth and reliable shifting even when transporting heavy loads.



The Isuzu GIGA 8x4 mining dump truck has a large, durable body designed to withstand the harsh conditions of mining sites. The body is made of high-quality materials that resist wear and tear, ensuring that the truck can withstand the rigors of daily use. The truck's cabin is designed to hold large amounts of material, making it ideal for transporting large quantities of minerals and rocks.



Isuzu GIGA 8x4 mining dump truck

One of the key features of the Isuzu GIGA vc66 mining dumper truck is its excellent stability and maneuverability. The truck’s 8x4 chassis provides excellent traction and stability even on rough terrain. This allows the truck to easily traverse tight spaces and steep slopes, enabling the truck to access the most remote mining sites. The truck’s suspension system is also designed to provide excellent stability, even when transporting heavy loads.



Safety is a top priority in the mining industry, and the Isuzu GIGA 40 tons 8x4 mining transport truck prioritizes this aspect with state-of-the-art safety features. Anti-lock Braking System (ABS), traction control, and advanced collision avoidance technology work together to reduce risk and ensure the safety of the operator and co-workers.



Isuzu GIGA vc66 mining dumper truck

The truck’s spacious and ergonomically designed cab provides the operator with a comfortable and practical workspace, equipped with intuitive controls and advanced technology to increase efficiency. The climate control system maintains an optimal working environment regardless of external weather conditions, ensuring the operator is comfortable during long shifts.



The Isuzu 40T mining dump truck on the Isuzu 8x4 Giga VC66 chassis redefines performance and reliability in the mining industry. With its rugged construction, advanced features and focus on safety and efficiency, this vehicle is a true workhorse that excels in the most challenging environments. Whether transporting tons of material or traversing treacherous terrain, this powerful truck delivers unmatched performance, making it the preferred choice for mining operations around the world.



Isuzu GIGA 40 tons 8x4 mining transport truck

It has the following advantages:

Efficient transportation: The large-capacity cargo box and powerful power system enable the Isuzu 40T mining dumper truck to complete a large number of transportation tasks in a short time, improving the efficiency of mining operations.



Strong adaptability: The sturdy chassis and excellent stability enable this vehicle to adapt to various complex mining environments, including rugged terrain and adverse weather conditions.



Safe and reliable: The advanced safety system provides additional protection for the driver and reduces the risk of accidents.



Isuzu vc66 heavy duty mining tipper truck

Convenient maintenance: The vehicle design takes into account the convenience of maintenance, and the components are easy to access, which helps to reduce maintenance time and costs.



Environmental protection and energy saving: The optimized engine and exhaust system not only reduces fuel consumption, but also reduces the emission of harmful substances, which meets the environmental protection requirements of modern mining operations.

Long-term investment value: Due to its durability and reliability, the Isuzu GIGA 8X4 mining dump truck has low operating costs and high residual value in long-term use, providing mining companies with a good return on investment.

Front lift cylinder

Mechanical self-locking device
