Isuzu GIGA 10 wheeler boom crane truck

 The Isuzu GIGA 10 wheeler boom crane truck is a heavy-duty vehicle that integrates a powerful crane system onto a sturdy and capable truck chassis. This truck is specifically designed for lifting and transporting heavy loads, making it an essential tool in construction sites, industrial complexes, and various infrastructure projects. With its 10-wheel configuration, it offers excellent stability and traction, ensuring safe and efficient operations.

The Isuzu GIGA 10 wheeler boom crane truck also called Isuzu GIGA 6x4 boom crane truck,Isuzu GIGA stiff boom crane truck,Isuzu GIGA truck mounted crane,Isuzu 6x4 mounted hydraulic crane, is a versatile and powerful vehicle designed for a wide range of heavy-duty lifting and transportation tasks.  combines the reliability and durability of Isuzu's engineering with advanced features to meet the demands of modern construction and industrial applications.



The Isuzu GIGA 10-wheeler boom crane truck redefines industrial transport with its blend of power and versatility. This truck, part of the renowned Isuzu GIGA series,standing tall as a symbol of reliability, this truck combines the robust design of the Isuzu GIGA series with a sophisticated boom crane. With its 10-wheeler configuration, the GIGA offers superior traction and load-bearing capacity, conquering diverse terrains effortlessly.

Powered by a formidable engine, the GIGA delivers consistent performance, making it ideal for hauling heavy loads or transporting oversized equipment. The integrated boom crane elevates its functionality, allowing for precise lifting and positioning of materials with ease and efficiency.

Isuzu GIGA 10 wheeler boom crane truck
General Technical Parameters
Overall Dimension		11980×2500×3980 (mm)
Gross Vehicle Weight		24900(Kg)
Curb Weight		15800(Kg)
Chassis Specification
Chassis Brand		ISUZU
Drive model		6*4
Cabin		One and a half row, Left Hand Driving, with air conditional
Number of Passengers		3
Engine	Model	6UZ1-TCG61
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR
	Power	380KW / 279HP
	Emission standard	EURO 6
	Displacement	9839(ml)
	Fuel type	Diesel
Gearbox		FAST 12-speed，manual
Brake System		Air break
Wheel Base		4600+1370 mm
Front/Rear Axle Loading		9000/13000/13000(Kg)
Approach/Departure Angle		23/12(°)
Overhang		1500/2250(mm)
Tire		315/80R22.5
Max Driving Speed		90(km/h)
Upperstructure Specification
Cargo Body	Dimension		8600×2300×550(mm)
	Material		Q235 carbon steel
	Cargo Thickness		Side 1.5mm, Bottom 2.5mm
Working System	Boom Type		Straight 4-Arm telescopic boom
	Crane	Range of Sprayer	30m
		Max Lifting Moment	25(T.M)
		Max Lifting Capacity	16000(kg)
		Max lifting height	12(m)
		Rotation angle	360(°)
		Installation space	1150(mm)
		Recommented power	30(kw)
		Maximum working pressure	26(Mpa)
		Max Flow	63(l/min)
		Crane weight	3800(kg)
	Leg	Leg type	H type
		Leg Span	2.28-5.9(m)
	Hydraulic system	Pressure	18(M pa)
		Capacity	70(l)
Other Configuration	Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.
Options	Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.

The Isuzu GIGA 10-wheel boom crane truck is the pinnacle of heavy-duty capability in the industrial transport and logistics sectors. Combining the durability and performance that the Isuzu GIGA range is known for with the added versatility of an advanced boom crane, this truck becomes a formidable asset for industries that require powerful material handling solutions.



 Isuzu GIGA 6x4 boom crane truck

At first glance, the Isuzu GIGA stands out with its imposing stature and purposeful design. The 10-wheel configuration exudes strength and stability, guaranteeing unmatched traction and carrying capacity over a wide range of terrains. Engineered to handle challenging conditions with ease, this truck is a reliable partner in the most demanding work environments.



The heart of the Isuzu GIGA beats in its powerful engine, a meticulously built powerhouse that propels this behemoth with ease. Whether hauling heavy construction materials or transporting oversized equipment, the engine delivers a symphony of controlled force, ensuring seamless movement and efficient operation at all times.



The 10-wheel configuration, with a 6x4 drive mode, provides excellent traction and stability even over rough or challenging terrain. The truck’s axle configuration (8-ton front and 16-ton rear) ensures it can carry substantial loads with ease. The wheelbase is 4600+1370 mm, while the overall dimensions (length, width and height) are optimized for maximum maneuverability and stability.



Isuzu GIGA stiff boom crane truck

Mounted on the Isuzu GIGA’s sturdy chassis is a versatile boom crane, a marvel of engineering precision and functionality. This important component extends the truck’s usefulness beyond mere transport, enabling it to lift, maneuver and position heavy objects with extraordinary agility and precision. Equipped with a host of control and safety features, the boom crane embodies efficiency and safety in every lifting operation.



One of the special features of the Isuzu GIGA boom crane truck is the boom crane system installed on it. This telescopic boom crane is capable of lifting 16 tons. The crane’s design allows for precise and controlled lifting operations, making it suitable for a wide range of tasks, including lifting and placing construction materials, installing equipment, and assisting in the assembly of large structures.



The crane’s boom is telescopic, meaning it can be extended and retracted to reach different heights and distances. This feature, combined with the crane’s swivel capability, provides maximum flexibility and versatility in a variety of lifting scenarios. The crane’s hydraulic system is driven by the truck’s engine, ensuring smooth and efficient operation.



Isuzu GIGA truck mounted crane

The truck’s spacious cab provides the operator with a comfortable and ergonomic environment, while prioritizing functionality and convenience. From intuitive controls to adjustable seating arrangements, every aspect of the cab is designed to enhance the operator’s comfort and productivity during long hours behind the wheel.



As the Isuzu GIGA roams construction sites and industrial fields, its presence is characterized by unwavering reliability and unflinching performance. Capable of handling a wide range of tasks with unparalleled efficiency, this truck embodies the perfect combination of power, flexibility and precision that is essential to thrive in the competitive heavy-duty transport and logistics sectors.



Isuzu 6x4 mounted hydraulic crane

The integration of advanced technology features further enhances the Isuzu GIGA’s appeal, making it a beacon of innovation in the industrial vehicle sector. From cutting-edge telemetry systems to intelligent monitoring equipment, each technological improvement helps to elevate the truck’s operational capabilities and ensure it performs at its best in every task it undertakes.



Safety remains the primary consideration in the design and manufacture of the Isuzu GIGA 6x4 mounted crane truck. With a suite of passive and active safety features, including advanced braking systems, stability control and collision avoidance technology, the truck prioritizes the protection of its occupants and surroundings, creating a safe operating environment at all times.



The truck’s intuitive maintenance features simplify maintenance and servicing, making routine inspections and repairs easy and minimizing downtime. Every component is carefully designed to last, underscoring Isuzu’s commitment to providing vehicles that stand the test of time and maintain optimal performance throughout their operating lifecycle.

Front outrigger

Ladder and aerial work area

Manual operating lever

Oil tank

Spare tire

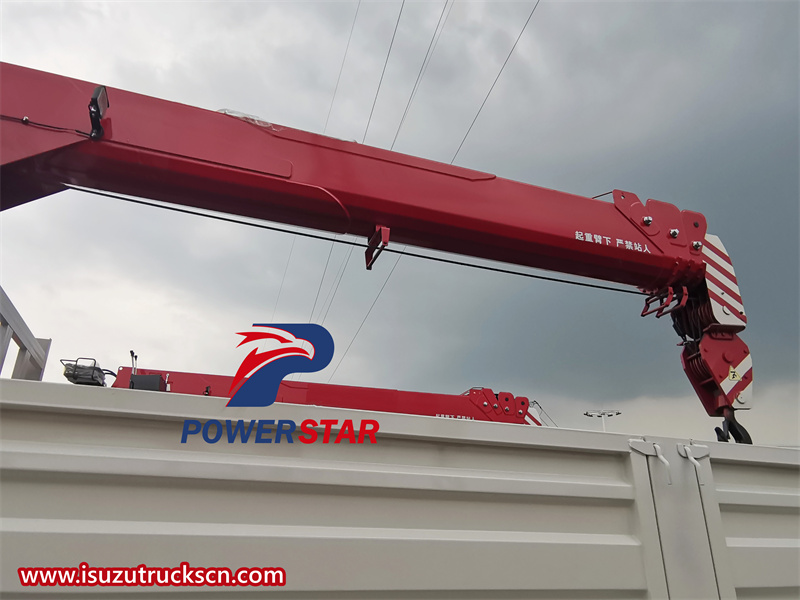

Boom
