Isuzu chassis Foam Water Rescue Fire Trucks

 Isuzu FVR 8cbm foam water fire truck is a highly efficient firefighting vehicle designed for firefighting emergency tasks. Equipped with CB10/40 fire pump and PS40W water cannon, it can provide strong water pressure and flow to achieve fast and effective firefighting.In addition, the vehicle is equipped with a variety of firefighting equipment such as fire extinguishers, water filters, fire hoses, fire bridge guards, medical kits, etc., to ensure that firefighters can quickly launch rescue operations at the disaster site.

Isuzu chassis Foam Water Rescue Fire Trucks also called Isuzu FVR 8cbm foam water fire truck,Isuzu FVR foam water firefighting truck,Isuzu FVR foam fire engine,Isuzu FVR heavy rescue fire truck,Isuzu 8cbm water foam fire tender.The Isuzu chassis Foam Water Rescue Fire Trucks are a versatile, reliable emergency response device designed to handle a wide range of firefighting and rescue operations. Built around a rugged Isuzu chassis, this fire truck is built to withstand demanding environments and conditions, ensuring quick and effective intervention when disaster strikes.



This fire truck has a 6cbm water tank capacity and a 2cbm foam tank. The vehicle can carry a large amount of water, which is essential for fighting fires of varying sizes and intensities. The water tanks are designed for optimal storage and flow, ensuring that water can be quickly and efficiently discharged through the truck's advanced pumping system. It is also equipped with a foam system. This system enables the truck to deliver a mixture of water and foam, creating a more effective and efficient way to extinguish fires. The foam is able to cover and suppress flames, reduce temperatures and deprive them of oxygen, while also helping to prevent re-ignition.



Key feature:

---- ISUZU chassis, perfect performance

---- ISUZU engine & gearbox, super powerful, no overhaul within 100,000 km.

---- Water tank and Foam tank capacity can be optional.

---- Easy operation and easy maintenance.

---- Various types of fire equipment are available.

ISUZU FVR 8 tons foam water fire truck
Chassis
Cabin		Isuzu FVR double row cabin,  4x2 left hand drive
		with air conditioner, 2+4 seats, with USB,radio, loud speaker
Vehicle Main Dimensions		Overall dimensions (L x W x H) mm:			8250*2500*3250 mm
		Wheel base:			4500 (mm)
		Overhang (front/rear):			1430/2070(mm)
		GVW			18000kg
Weight in KGS		Curb Weight			9855kg
		Payload			8tons
Engine		Brand			ISUZU
		Model			6HK1-TCG61, EURO VI
		Emission			7790 ml
		Horse power			240HP/177Kw
		Power Type			6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Gearbox		FAST 8-speed，manual
Tire		295/80R22.5, 6 pcs+1 spare tire
Brake		Air brake
Max speed		90km/h
Upper parameters
Tank volume			6cbm water tank and 2cbm foam tank
Manhole in the tank			DN450
Thickness			5mm
Material			Carbon steel and high tensile steel
Standard configuration of the tank			Equipped with front, side and Sprinkler (Sprinkling width>14m) Equipped with fire fighting pump pump (Suction lift >7m) Equipped with fire valve, water valve, and filter gauze. Equipped with water cannon. rubber padding between tanker and chassis Equipped with water pump Equipped with fire brigade system, fire gun on top
Fire fighting pump
Type of pump			CB10/40 Centrifugal pump
Fire fighting pump flow			40L/S
Max working pressure			1.251Mpa
Flow (L/S)	Outlet pressure(Mpa)		Rated speed(r/min)	Crank power (kw)		Suction depth(m)
40	1		3916±50	68.2		3
28	1.3		4163±50	69.4		3
20	1		3700±50	50		7
Fir fighting fixed water monitor in the top of truck
Type of monitor			PS40W
Diameter (mm)			φ100
Flow (L/S)			40L/s
Max range (m)			≥ 65m
Working pressure(Mpa)			≤0.7 MPa
Vertical rotation angle( degree)			-30~70
Horizontal rotation angle (degree)			360°
Size(mm)			1000*340*600
Weight (kg)			≤ 50
Pipe system
Pipe Line inlet			2 inlet, φ125 inlet in the pump(our standard is 1 inlet)
Pipe Line outlet			2 outlet, φ65, in the back of pump

This advanced emergency response vehicle combines the durability and reliability of an Isuzu chassis with the versatility and efficiency of a water and foam firefighting system.

The fire truck's water and foam system is controlled by a sophisticated electronic control unit (ECU), which allows operators to precisely control the flow and pressure of water and foam. This ensures that the truck can respond quickly and effectively to a wide range of firefighting situations, from small brush fires to large-scale structural blazes.

The Isuzu FVR 8cbm Water Foam Rescue Fire Truck is also equipped with a range of specialized firefighting tools and equipment. These include nozzles and hoses for delivering water and foam to the fire, as well as ladders, cutting tools, and other equipment for rescue operations. The truck's cab is designed to provide operators with a clear view of the fire and surrounding area, allowing them to make informed decisions and respond to emergencies in a timely and effective manner.

Technical drawing of Isuzu FVR water foam rescue fire truck

Isuzu chassis Foam Water Rescue Fire Trucks

Chassis and Body

The Isuzu FVR Double Cab Chassis on the 8m3 Foam Water Fire Truck is the pinnacle of engineering prowess, designed to provide firefighters with a command center that prioritizes efficiency, safety and comfort. This double cab configuration elevates the vehicle’s operational capabilities, providing ample space for a full complement of firefighters and necessary equipment to respond to emergencies with precision and efficiency.



The most outstanding feature of the iSUZU FVR Double Cab Chassis is its spacious cab, which accommodates two rows of seats. This accommodates up to six passengers, ideal for operations that require multiple drivers or passengers to accompany the driver on long hauls.



The FVR chassis is equipped with a powerful diesel engine that provides ample torque and horsepower, ensuring smooth acceleration and excellent traction. This is essential for hauling heavy loads and maintaining efficient travel speeds, even in demanding conditions.



Isuzu FVR 8cbm foam water fire truck

The rugged FVR Double Cab Chassis is the fire truck’s sturdy foundation, imparting the stability and resilience necessary to navigate challenging terrain and quickly reach the scene of an emergency. Built to withstand the rigors of firefighting duties, this chassis reflects Isuzu’s reputation for reliability and performance, providing a solid platform for the integration of firefighting systems and equipment.

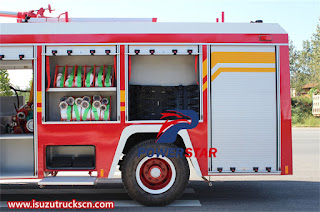

Complementing the strength of the chassis, the body of the Isuzu 8CBM Water Foam Fire Truck is a functional masterpiece designed to accommodate necessary firefighting equipment and provide an optimized workspace for operational efficiency. The body is carefully designed to accommodate firefighting tools, hoses, pumps and storage boxes, ensuring firefighters have immediate access to the equipment they need to effectively respond to emergencies.



The ergonomic layout of the body prioritizes accessibility and organization, allowing firefighters to quickly and accurately retrieve and deploy equipment in high-pressure situations. Integrated lighting, reflective markings and strategic storage solutions further enhance the functionality of the body, ensuring responders can operate flexibly and confidently in a variety of firefighting scenarios.



Isuzu FVR foam water firefighting truck

 6cbm water tank and 2cbm foam tank

The integration of a 6cbm water tank and a foam tank on the Isuzu FVR 8cbm water foam fire truck represents a critical advancement in firefighting technology, enhancing the vehicle's capacity to combat fires with precision and efficiency. These tanks play a pivotal role in ensuring that responders have an ample supply of water and foam at their disposal, enabling them to swiftly extinguish fires and mitigate hazards in diverse emergency scenarios.



The 6cbm water tank serves as the reservoir of life-saving liquid that fuels the firefighting efforts of the Isuzu FVR fire truck. This substantial water capacity allows firefighters to tackle fires effectively, providing a sufficient volume of water to douse flames and cool hotspots with sustained efficiency. The water tank is strategically designed and integrated into the vehicle to optimize accessibility and quick deployment, ensuring that responders can rapidly deploy water when confronting emergencies.

Isuzu FVR foam fire engine

In addition to the water tank, the foam tank on the Isuzu FVR fire truck is a game-changer in firefighting capabilities, offering a specialized solution for combating flammable liquid fires and other challenging scenarios. The foam tank houses a supply of firefighting foam that, when mixed with water, creates a powerful extinguishing agent that smothers flames and prevents reignition. This foam tank enables responders to address fires with increased effectiveness, particularly in situations where traditional water may not suffice.



The integration of both the water tank and foam tank on the Isuzu FVR 8cbm water foam fire truck underscores the vehicle's versatility and adaptability in handling a wide range of firefighting challenges. By combining the firefighting capabilities of water and foam, this fire truck empowers responders to tailor their approach to different fire types with precision and efficacy, maximizing their ability to contain and extinguish fires swiftly.



Moreover, the design and placement of these tanks are meticulously engineered to ensure optimal performance and operational convenience for firefighters. The seamless integration of the water tank and foam tank into the vehicle's structure minimizes response times and maximizes firefighting efficiency, enabling responders to meet the demands of emergency situations with speed and effectiveness.

Isuzu FVR heavy rescue fire truck

CB10/40 fire pump and PS40W monitor

The CB10/40 fire pump and PS40W monitor integrated into the Isuzu FVR 8cbm water foam fire truck represent cutting-edge firefighting technology that enhances the vehicle's firefighting capabilities, enabling firefighters to respond to emergencies with precision and effectiveness. These critical components are designed to deliver high-performance water delivery and targeted fire suppression, empowering responders to combat fires efficiently and safeguard lives and property.



The CB10/40 fire pump is a powerhouse of water delivery, capable of generating significant pressure and flow rates to facilitate effective firefighting operations. This pump is meticulously engineered to draw water from the onboard tanks or external water sources and propel it through hoses and nozzles with exceptional force, enabling firefighters to reach distant fires and supply a steady stream of water to extinguish flames rapidly. The CB10/40 fire pump is a cornerstone of the Isuzu FVR fire truck's firefighting system, providing the necessary water pressure and flow for responders to combat fires with agility and precision.

CB10/40 fire pump

CB10/40 fire pump



Complementing the capabilities of the fire pump, the PS40W monitor is a versatile firefighting tool that enhances the vehicle's firefighting reach and effectiveness. The monitor, or water cannon, is designed to deliver a concentrated, powerful stream of water or foam to target fires from a distance, allowing firefighters to suppress flames from a safe vantage point. The PS40W monitor's ability to provide adjustable flow rates and spraying patterns gives responders flexibility in suppressing fires, enabling them to adapt their tactics to varying firefighting scenarios with ease.



The seamless integration of the CB10/40 fire pump and PS40W monitor into the Isuzu FVR 8cbm water foam fire truck amplifies the vehicle's firefighting prowess, elevating its capacity to confront fires with speed and precision. These components work in harmony to provide firefighters with the tools needed to combat fires effectively, whether through direct application of water and foam or targeted suppression from a distance. The reliability and performance of the CB10/40 fire pump and PS40W monitor exemplify Isuzu's dedication to equipping firefighters with advanced solutions to protect communities and ensure public safety.

PS40W fire monitor

The control panel of the Isuzu FVR 8cbm water foam fire truck is designed to be simple and intuitive, and is designed to provide firefighters with convenience and reliability in operating the vehicle and fire extinguishing system. The control panel is well laid out, integrating key controls and displays, and focusing on easy operation and quick response. Firefighters can easily access and operate water pumps, foam spray guns, lighting systems and other key functions through the control panel to quickly start and adjust operations in emergency situations.

The indicators and instruments on the control panel are clear and provide firefighters with real-time information on vehicle status, water pump pressure, pump output and other important parameters. With this visual feedback, firefighters can keep abreast of the current operating status, ensure the normal operation of the vehicle and fire extinguishing system, and quickly make necessary adjustments to respond to emergencies.

Control panel

Firefighting equipment

The vehicle is equipped with firefighting equipment, which together with auxiliary equipment constitutes the powerful firefighting and rescue capabilities of the iSUZU FVR fire truck. They are designed with practicality and durability in mind to ensure rapid response and effective response to various challenges in emergency situations.



1. Fire extinguisher:

The vehicle is usually equipped with a variety of types of fire extinguishers, including dry powder fire extinguishers, carbon dioxide fire extinguishers and water-based fire extinguishers to deal with different types of fires. These fire extinguishers are placed in easy-to-access locations for drivers and operators to use quickly in emergency situations.

2. Water filter:

The water filter is one of the important equipment on the fire truck. It can extract and filter water from various water sources to ensure that the water quality supplied to the fire pump meets the use requirements. The water filter can effectively remove impurities and suspended matter in the water to prevent clogging the fire pump and affecting the fire extinguishing effect.

3. Water collector:

The water collector is used to collect and store water from different water sources, such as fire hydrants, ponds, rivers, etc. It usually has a large capacity and can quickly collect and supply a large amount of water to the fire pump. The design of the water collector takes into account portability and durability so that it can be used in various complex environments.

4. Water distributor:

The water distributor is one of the key equipment on the fire truck. It can distribute the high-pressure water flow from the fire pump to multiple water outlets or fire hoses. In this way, firefighters can operate multiple fire extinguishing points at the same time to improve the efficiency of fire extinguishing. The water distributor usually has an adjustable flow control function to adapt to different fire extinguishing needs.

DC spray water gun

Foam fire gun, DC switch water gun, DC flowering water gun

5. Fire hose:

The fire hose is an important pipe connecting the fire pump and the fire extinguishing point. It is made of high-strength, wear-resistant materials and can withstand the impact of high-pressure water flow. The car will be equipped with fire hoses of various lengths and specifications to meet the fire extinguishing needs of different distances and terrains. The hose interface usually adopts a quick connection design for quick assembly and disassembly.

6. Fire bridge:

The fire bridge is a portable device used to cross gullies, rivers or other obstacles. It is usually made of lightweight materials and is easy to carry and assemble. During the firefighting process, if the water source or fire extinguishing point is located in a difficult-to-reach place, firefighters can use fire protection bridges to build temporary passages to ensure that fire trucks or firefighters can approach the target smoothly.

Fire hose

7. Fire axe, shovel, pickaxe:

These are hand tools commonly used by firefighters during firefighting and rescue. Fire axes are used to break down obstacles such as doors, windows, and wooden boards; shovels and pickaxes are used for digging, cleaning, and opening up passages. These tools are usually made of high-strength materials and are durable and practical.

8. Fire wrench:

Fire wrench is a tool specially used to remove and install various bolts, nuts and other fasteners in firefighting equipment. It usually has a variety of specifications and sizes to meet the disassembly needs of different equipment. The design of the fire wrench takes into account portability and ease of use so that firefighters can operate quickly in an emergency.

Fire axe, shovel, pickaxe

9. Fire suit:

Fire suit is a protective equipment that firefighters must wear during firefighting and rescue. It is usually made of flame-retardant materials and has functions such as heat insulation, fire resistance, and waterproofing. Fire suits are also equipped with accessories such as reflective strips and respirators to improve the visibility and respiratory protection of firefighters in complex environments.

10 First AID Kit:

The first aid kit is one of the essential first aid equipment on the fire truck. It contains a variety of commonly used medical supplies and medicines, such as bandages, tourniquets, disinfectants, painkillers, etc. During the fire fighting and rescue process, if firefighters or injured people need emergency medical assistance, the medical kit can provide timely initial treatment measures.

 First AID Kit
