Isuzu Ready Mix Concrete Mixer Truck

 Isuzu Ready Mix Concrete Mixer Trucks stand at the forefront of modern construction equipment, embodying a harmonious fusion of robust engineering, cutting-edge technology, and unparalleled efficiency. These formidable vehicles serve as indispensable allies to the construction industry, facilitating the seamless blending and transportation of concrete to construction sites with precision and reliability.

Isuzu Ready Mix Concrete Mixer Truck also called Isuzu 700P transit mixer truck,Isuzu 700P 4cbm concrete mixer truck,4cbm NPR Isuzu concrete truck mixer,Isuzu 700P single row 4x2 concrete transit mixer truck,4 Cubic meter self loading ready mix truck.The Isuzu Ready Mix Concrete Mixer Truck stands as a testament to the convergence of engineering prowess, durability, and efficiency in the construction industry. This formidable machine, crafted by POWERSTAR, a renowned name in automotive engineering, is designed to streamline the process of transporting and mixing concrete on-site, significantly enhancing productivity and reducing downtime in construction projects. With its robust construction, intuitive operation, and adaptability to various work environments, the Isuzu Ready Mix Concrete Mixer Truck is a vital tool for contractors, builders, and infrastructure developers alike.

The Isuzu 700P ready mix concrete mixer truck is the pinnacle of innovation, efficiency and reliability in the world of construction equipment. With its robust engineering, advanced technology, and versatile capabilities, this powerful vehicle embodies the fusion of form and function, enabling construction professionals to undertake projects with confidence and precision. As the cornerstone of modern construction practice, the Isuzu 700P concrete mixer truck continues to redefine industry standards and take construction efficiency to new heights.

Isuzu Ready Mix Concrete Mixer Truck
Vehicle model	PT5110GZR
Overall dimension	6800x2500x2965mm
GVW	10550kg
Curb weight	4500kg
Chassis parameter
Chassis Brand	Isuzu
Wheelbase	3815mm
Driving type	4x2,Left hand drive(LHD)
Engine parameter
Engine model	4HK1-TCG61
Rated power (HP)	190HP/139Kw
Rated speed	2600rpm
Max·torque	510N·M
Displacement	5193ml
Emission standard	Euro VI
Fuel type	Diesel
Transmission(Gear box)	MLD 6-speed,manual
Front axle loading	4000kg
Rear axle loading	7000kg
Tyre	235/75R17.5 (6+1)
Cab type	Isuzu 700P single row,2 seats,with air-conditioner
Mixing Drum parameter
Mixing drum material	High quality wear-resistance steel
	Model:Q345
	Drum body thickness: 5mm, End cover thickness:6mm
Agitating capacity	4M3
Charging rate	≥3 m3/min
Top feed hopper dimension	≥650 mm
Discharging rate	≥1.2 m3/min
Residual rate	≤0.5%
Water supply	Baric water supply system
Water tank capacity	400L
Mixer drum rotation speed(rpm) 0~12	Mixer drum rotation speed(rpm) 0~12
Air pressure water supply	Air pressure water supply
Operating system Model:linkage operation	Operating system Model:linkage operation
Accessory	Tool box

The Isuzu Ready Mix Concrete Mixer Truck is a highly specialized and versatile machine that has revolutionized the way concrete is transported and mixed on construction sites. It combines superior engineering, mixing capacity, versatility, making it a valuable asset to any contractor or builder. Whether you are pouring the foundations for a skyscraper or building roads and bridges, the Isuzu concrete mixer truck is the perfect partner for your construction needs.



 Isuzu Ready Mix Concrete Mixer Truck

Engineering Excellence

At the heart of the Isuzu 700P transit mixer truck lies its meticulously engineered chassis and drivetrain. The truck is powered by an Isuzu diesel engine, renowned for its fuel efficiency, reliability, and low emissions. This engine, coupled with a robust transmission system, ensures smooth and powerful acceleration, even when hauling heavy loads of concrete. The chassis is designed to withstand the rigors of construction sites, with reinforced suspension and sturdy frame components that minimize wear and tear, ensuring long service life.



Mixing Capability

The star attraction of the Isuzu 700P transit mixer truck is its advanced mixing drum. This drum, typically made of wear-resistant steel, is designed to rotate in both directions, allowing for efficient mixing and discharging of concrete. The mixing blades inside the drum are strategically positioned to ensure even distribution of aggregate, cement, and water, resulting in a uniform mixture that meets stringent quality standards. The drum's capacity, ranging from several cubic meters to over a dozen, depends on the model, allowing contractors to choose the right truck for their specific needs.



Isuzu 700P transit mixer truck

Hydraulic System and Controls

The hydraulic system of the Isuzu 700P 4cbm concrete mixer truck plays a crucial role in facilitating the mixing and discharge of concrete. High-quality hydraulic components ensure smooth and reliable operation, while advanced controls enable the operator to adjust the mixing speed, drum rotation, and discharge rate with precision, allowing for customized concrete mixes to meet specific project requirements.



Capacity and Performance

With varying capacities ranging from a few cubic meters to tens of cubic meters, the Isuzu 700P 4cbm concrete mixer truck caters to a wide range of construction projects, from small-scale residential developments to large-scale infrastructure undertakings. The truck's performance is exemplary, offering high productivity, efficiency, and reliability, thereby optimizing construction timelines and enhancing project outcomes.



4cbm NPR Isuzu concrete truck mixer

Technological Innovations

The 4cbm NPR Isuzu concrete truck mixer incorporates cutting-edge technologies that enhance its performance and functionality. Advanced sensors monitor crucial parameters such as temperature, pressure, and mixing consistency, providing real-time feedback to the operator and enabling proactive maintenance and troubleshooting. Additionally, telematics systems enable remote monitoring, diagnostics, and data analysis, optimizing operational efficiency and uptime.



Versatility and Customization

One of the key strengths of the 4cbm NPR Isuzu concrete truck mixer lies in its versatility. The truck can be customized to suit a wide range of applications, from pouring foundations and slabs to constructing walls and pillars. Its ability to mix and transport concrete simultaneously eliminates the need for separate mixing stations, reducing the overall cost and complexity of construction projects. Additionally, the truck can be equipped with various accessories, such as water tanks, chutes, and discharge hoses, to further enhance its functionality.



Environmental Considerations

In today's environmentally conscious world, the Isuzu 700P single row 4x2 concrete transit mixer truck is designed with sustainability in mind. The use of fuel-efficient diesel engines and low-emission technologies helps reduce the truck's carbon footprint. Furthermore, the precise mixing capabilities of the truck minimize waste by ensuring that only the required amount of concrete is mixed and transported, reducing the need for excess materials and subsequent disposal.

Front view

Rear view

The Isuzu Ready Mix Concrete Mixer Truck is a versatile machine designed specifically for the construction and infrastructure development industries. Its main uses are concentrated in the following areas:



★ On-site mixing and transportation: This truck is not only capable of transporting pre-mixed concrete, but more importantly, it is capable of real-time mixing during transportation. This means that before arriving at the construction site, the mixing drum inside the truck will continue to rotate to keep the concrete components evenly mixed. Once it arrives at the designated location, the concrete can be immediately unloaded and used for construction, greatly saving time and labor costs.

★ Improve construction efficiency: Since the truck can keep the concrete mixed during transportation, there is no need to set up an additional concrete mixing plant at the construction site. This not only reduces equipment requirements, but also speeds up construction because the concrete can be used for pouring immediately without waiting for the production of the mixing plant.

Steering wheel

★ Adapt to a variety of construction environments: The Isuzu 700P single row 4x2 concrete transit mixer truck is highly flexible and adaptable, and can easily cope with a variety of complex construction environments. From the narrow streets in the city center to the rugged mountain roads in remote areas, this truck can deliver concrete to the construction site safely and efficiently with its excellent off-road capabilities and stable driving performance.

★ Guaranteed concrete quality: The truck's built-in mixing drum uses advanced mixing technology to ensure uniform mixing of concrete components. In addition, by precisely controlling the mixing time and speed, concrete that meets specific requirements can be produced, thereby ensuring construction quality.

KT-YS oil circuit radiator

★ Reduced waste and pollution: Since the Isuzu 700P ready mix concrete mixer truck can mix and transport the right amount of concrete as needed, it can significantly reduce material waste and environmental pollution. Compared with traditional concrete production methods, this truck can more accurately control the amount of concrete used, reducing the generation of surplus and waste.

★ Support large-scale construction: In large-scale infrastructure construction projects, such as highways, bridges, tunnels and high-rise buildings, a large amount of concrete is required. With its efficient transportation and mixing capabilities, the Isuzu Ready Mix Concrete Mixer Truck can quickly meet the concrete needs of these projects and provide strong support for construction.

Multi-way valve

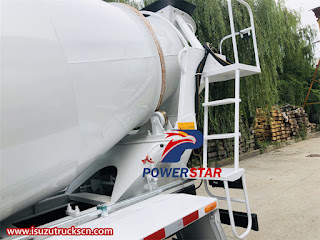

Ladder

Mixing tank
