Isuzu brand Insulated Bucket Manlift Truck

 The Isuzu brand Insulated Bucket Manlift Truck, specifically the ISUZU KV100 Knuckle Boom Aerial Platform Truck, is a high-performance and versatile vehicle designed for a wide range of aerial work applications. With its robust construction, advanced features, and exceptional maneuverability, the ISUZU KV100 stands out as a leading choice in the industry.

Products Description

Isuzu brand Insulated Bucket Manlift Truck also called Isuzu KV100 knuckle boom aerial platform truck,Insulated boom lift bucket truck Isuzu,Isuzu KV100 manlifter boom truck with basket,Isuzu 14m folding boom lift truck,Isuzu KV100 bucket truck.The Isuzu brand Insulated Bucket Manlift Truck is an insulated bucket manlift truck that combines power, efficiency, and safety. It is designed to provide operators with a stable and secure platform for performing high-altitude tasks such as maintenance, construction, and repair work. The truck is equipped with a knuckle boom (also known as a knuckle arm or folding boom), which allows for precise positioning and extended reach.

Isuzu KV100 14m knuckle boom aerial working truck is a high-performance vehicle designed for aerial work. It is equipped with a powerful Isuzu diesel engine and has a 14-meter-long articulated telescopic boom with excellent reach and flexibility. The vehicle is equipped with advanced intelligent control systems and automated operating devices, which improves operating efficiency and precision while ensuring the safety of operators. It has a wide range of applications in power, communications, construction, gardening and other fields, providing efficient, safe and reliable solutions for various industries.

Specifications

Isuzu brand Insulated Bucket Manlift Truck
General	Vehicle Brand	POWERSTAR
	Chassis Brand	ISUZU KV100
	Overall Dimension	6700*2250*3450mm
	GVW/ Kerb Weight	7300kg/4500kg
	Wheelbase	3815mm
Cab	Cab Capacity	2 persons allowed
	Air Conditioner	Have air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU engine 4KH1CN6HB
	Power	132HP(97KW)
	Displacement	2999ml
	Emission Standard	Euro VI
Chassis	Drive Type	4X2,left hand drive
	Transmission	ISUZU MLD 6 gearbox,no overhaul within 500,000km
	No.of axle	2
	Tyre Specification	700R16
	Tyre Number	6 tires and 1 spare tire
	Max Speed	105km/h
	Paint	Metallic paint
Up-parts specification
Arm	Model	Three sections folding boom
	Max working height	14m
	Maximum operating radius	7.1m
	Maximum operating height operating range	2.2m
	Elevation angle	0°～90°
	Working angle	360°
Outrigger type	Type	Front V-type,rear H-type
	Longitudinal span	2430mm
	Transverse span	1670/2780mm
Hanging basket	Rated load	200kg capacity,anti-slip floor
	Dimension	1080×610×1100mm
	Leveling type	Mechanical rod
Hydraulic system	Hydraulic valve	Manual
	Working pressure	16Mpa
	Oil cylinder	Equipped with lock function

Applications

ISUZU KV100 14m Knuckle Boom Aerial Platform Truck is a professional vehicle designed for aerial work. It combines the reliability and advanced technology of the Isuzu brand to provide efficient and safe working solutions for multiple industries such as power, communication, construction, and gardening.



Technical drawing of Isuzu manlift bucket truck

Isuzu KV100 aerial platform truck

Powerful Engine

The Isuzu 14m knuckle boom aerial platform truck is modified on the basis of the Isuzu KV100 chassis and is powered by a powerful Isuzu 4KH1CN6HB diesel engine, which provides excellent performance and reliability. The engine is designed to meet the Euro 6 emission standards, ensuring compliance with environmental regulations. With its 132HP engine, the truck can easily handle heavy loads and demanding working conditions.



Hydraulic Control System

The aerial work platform truck has an advanced hydraulic control system that operates the boom and bucket movement. The system provides smooth and precise control, allowing the operator to position the bucket accurately and efficiently. The hydraulic system is also equipped with safety features such as a two-way balance valve or hydraulic lock to ensure the stability and safety of the platform during operation. The operator can easily control the lifting, retracting, rotating and other actions of the boom and platform through the control panel in the cab, improving work efficiency.



Isuzu KV100 knuckle boom aerial platform truck

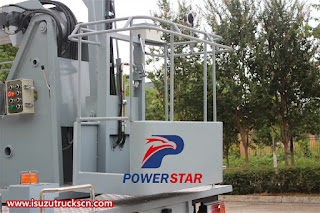

Insulated bucket

The insulated bucket is a key feature of the Isuzu insulated bucket manlift truck. It is designed to protect the operator from extreme temperatures and other environmental conditions. The bucket is made of high-quality materials and is equipped with safety features such as seat belts and emergency stop buttons. The rated load capacity of the bucket is typically up to 200 kg, which can safely transport tools, materials and personnel.



3-section folding arm

The 3-section folding arm is a unique feature of the ISUZU KV100 aerial working truck, providing a greater reach and precise positioning. The boom is made of high-strength steel and has multiple sections that can be folded or extended as needed. The boom can easily reach high-altitude working points while maintaining a stable operating platform to ensure the safety of operators.

Insulated boom lift bucket truck Isuzu

Advantages

Versatility:

Applicable to a variety of aerial work scenarios, such as power line maintenance, communication tower installation, building exterior wall repair, tree pruning, etc.

Arms and work platforms of different lengths can be customized according to customer needs to meet various work needs.

Efficiency:

The powerful power system and flexible telescopic arm design enable the vehicle to quickly reach the work point and improve work efficiency.

The stable work platform and efficient control system ensure that the operators can complete the work tasks in a short time.

Safety:

Equipped with multiple safety protection systems, such as overload protection, emergency stop button, anti-rollover device, etc., to ensure safety during the operation.

The driver can observe the work site situation in real time through the monitoring camera to improve the safety of the operation.

Durability:

Made of high-strength materials to ensure that the vehicle can maintain stable performance under various harsh working conditions.

Perform regular maintenance and care to extend the service life of the vehicle and reduce operating costs.



Insulated bucket

ISUZU KV100 14m Knuckle Boom Aerial Platform Truck has a wide range of applications in multiple fields due to its excellent performance and versatility. Here are some detailed descriptions of its applications:

1. Power Industry

In the power industry, ISUZU KV100 aerial work vehicle is widely used in the inspection, maintenance and installation of transmission lines. Its 14-meter telescopic arm can easily reach the height of high-voltage wires, allowing maintenance personnel to work on a safe and stable work platform. In addition, the intelligent control system and automated operating device equipped with the vehicle improve the efficiency and accuracy of the operation, and reduce the labor intensity and safety risks of maintenance personnel.

2. Communications Industry

In the communications field, ISUZU KV100 folding arm aerial work vehicle is also an important tool for base station construction, maintenance and inspection. The vehicle's high-altitude operation capability enables maintenance personnel to easily reach high-altitude equipment such as base station antennas and signal transmitters for installation, commissioning and maintenance work. At the same time, the stability and safety of the vehicle also provide reliable protection for maintenance personnel.

Folding arm, rotating mechanism，rear operation box, tool box, outriggers, platform

3. Construction industry

On construction sites, Isuzu 14m folding arm aerial work vehicles are used for a variety of operations such as exterior wall maintenance, high-altitude installation, and glass curtain wall cleaning. The vehicle can easily reach high altitudes of buildings, providing a stable working platform for construction workers. In addition, the vehicle's compactness, flexibility, and good passability enable it to shuttle freely in narrow construction site environments, improving construction efficiency and quality.

4. Gardening industry

In the gardening industry, the KV100 aerial work vehicle is used for high-altitude operations such as tree pruning and street light maintenance. The vehicle's high-altitude operating capabilities and stability provide garden workers with a safe and efficient working platform. At the same time, the vehicle's lightness and flexibility also enable it to easily operate in complex garden environments.

5. Other industries

In addition to the above industries, the Isuzu KV100 aerial work vehicle is also widely used in other fields such as advertising installation, photography, and film and television production. Its high-altitude operating capabilities and stability provide convenient and efficient solutions for these industries.

Rear operation box

Rotating mechanism

Outriggers and hydraulic tank,spare tire
