PM80A Pump ISUZU Vacuum Sewage Suction Truck

 The Isuzu 8m3 PM80A Vacuum Pump Sewage Suction Truck is a powerful, specialized vehicle equipped with a high-performance vacuum pump system. It is designed to effectively clean sewage and other wastes, suitable for urban environments and industrial uses. This vehicle has a reliable sewage suction capacity, which can efficiently clean sewer pipes, sewage pools and other contaminated sites. It provides reliable and strong power, making it an important tool in cleaning work.

PM80A Pump ISUZU Vacuum Sewage Suction Truck also called Isuzu new FVR 4x2 vacuum tank truck,Isuzu FVR 8000L sewer vacuum truck,Isuzu FVR PM80A vacuum pump tank truck,Isuzu F-series sewer disposal tanker truck,Isuzu FVR GIGA septic tank truck with MORO PM80A pump.

The PM80A Pump ISUZU Vacuum Sewage Suction Truck is a versatile and reliable machine that combines the power of an Isuzu FVR chassis with a high-performance PM80A vacuum pump. This combination ensures that the truck can handle a wide range of sewage suction tasks with ease. The truck is specifically engineered for use in municipal, industrial, and agricultural settings where efficient sewage removal is crucial.

Key Features:

----ISUZU new FVR chassis, perfect performance

----ISUZU 6HK1 engine, super powerful, reliable performance, no overhaul within 100,000 km

----Nice shape, rational structure

----ltaly imported Moro PM80A vacuum pump super powerful, efficient pump in and out

----Strong, durable, perfect performance

Specifications

PM80A Pump ISUZU Vacuum Sewage Suction Truck
General	Manufacturer	POWERSTAR
	Truck Model	PT5180GZY
	Overall Dimension(mm)	8300 x 2550 x 3515 mm
	GVW/Curb weight(kg)	18000kg/ 9850kg
	Loading Volume	8 CBM,8000liters
Chassis	Brand	ISUZU
	Drive Type	4X2, LHD
	Wheelbase(mm)	4500mm
	Front /rear overhang(mm)	1360/2610 mm
	Wheel truck(front /rear)(mm)	1960/1860 mm
	Axle loads	6500/11500kg
	Max driving speed(km/h)	95 km/h
	Steering gear	Power steering
	Tire	7pcs with one spare tire
		295/80R22.5
Transmission	Manual type;FAST 8-speed
Cab	A/C installed ,one and half row,two door,3 persons allowed
Engine	Model	ISUZU 6HK1-TCG61
	Fuel type	Diesel
	Fuel tank capacity	200L
	Power(kw)	240HP/177Kw
	Displacement(ml)	7790
	Rated speed	2400rpm
	Maximum torque	760N.M
	Max torque speed	1450rpm
	Intake form	Six cylinder in line, water cooling, six stroke, pressurized medium - cooling, direct injection
	Emission standard	Euro 6
Sewage Suction System
Sewage Tanker	Capacity	8 cubic meters,8000liters
	Material	Carbon steel
Dumping System	Middle Tipper	Hydraulic Controlled Rear Door and Middle lifting.
	Rear Door	Hydraulic controlled with sewage drain pipe
Vacuum Pump	ITALY PM80A VACUUM PUMP
	Free air flow	12000Lt/min(424cfm)
	Max.Vacuum	28 In.Hg/95%
	Continuous Duty Vacuum	23.6 In.Hg/80%
	Max. Pressure	29psig
	Rotation speed	1100rpm
	Sound pressure at 7 meters (23 ft) 60% vacuum	79dB
	108mmΦ suction pipe, suction time ≤5min,  dump angle ≥45
Sewage Pipe	8 meters Rubber Pipe (one unit pipe)
Other Parts	Water-gas separator,  Oil-gas separator,  Four way valve,  Safety valve,  Anti overflow valve,  Anti overflow warning device......

Applications

The PM80A Pump ISUZU Vacuum Sewage Suction Truck is a specialized vehicle designed for efficient and effective sewage suction and transportation. It leverages cutting-edge technology and robust engineering to provide unparalleled performance in various sewage handling applications.

Technical drawing of Isuzu FVR 8cbm PM80A pump vacuum sewage suction truck

PM80A Pump ISUZU Vacuum Sewage Suction Truck

Chassis and Engine

The heart of the PM80A Pump Isuzu Vacuum Sewage Suction Truck is the new Isuzu FVR chassis. This chassis is renowned for its durability, reliability and versatility. It provides a stable and sturdy platform for the vacuum pump and other important components.



The chassis is powered by a powerful 6HK1-TCG61 240HP engine. The engine delivers impressive torque and power, allowing the truck to handle heavy loads and challenging terrain with ease. The engine is also designed to save fuel, ensuring the truck can run for long periods without frequent refueling. At the same time, it is equipped with a FAST 8-speed transmission, which shifts smoothly, bringing the driver a more efficient and convenient driving experience.



The Isuzu FVR 8cbm vacuum sewage suction truck has a wheelbase of 4500mm. This wheelbase provides excellent stability and maneuverability, allowing the truck to easily pass through tight spaces and narrow streets. The suspension system is also designed to provide a smooth and comfortable driving experience, even when driving on uneven roads.



Isuzu new FVR 4x2 vacuum tank truck

Vacuum Pump

The Moro PM80A vacuum pump is the powerhouse behind the Isuzu Vacuum Sewage Suction Truck's sewage suction capabilities. The pump is designed for efficient sewage suction. It has a strong suction capacity and can handle large amounts of sewage quickly and efficiently. The pump is also equipped with advanced controls that allow the operator to adjust the suction and flow rate according to the specific needs of the task.



The PM80A vacuum pump is made of high-quality materials to ensure durability and service life. It is also easy to maintain and repair, which reduces the overall cost of ownership.



The Italy Moro PM80A vacuum pump is an efficient and reliable vacuum suction equipment, mainly used to suck liquid and solid waste, and is one of the important components in the PM80A pump Isuzu vacuum suction truck. This vacuum pump adopts an advanced working principle, which can generate strong suction and ensure efficient waste suction and discharge process. Here is the working principle of the PM80A vacuum pump:



Moro PM80A vacuum pump

● Vacuum system:

First, the Moro PM80A vacuum pump operates through mechanical or liquid media to form a vacuum system. This means that an environment below atmospheric pressure is created inside the pump body, so that the surrounding air or liquid is pushed into the inside of the pump.



● Suction process:

Once the vacuum system is established, the Moro PM80A vacuum pump begins to suck wastewater and solid waste. Through the connection pipe or hose, the pump draws the material from the storage container or sewage tank into the pump body.



Sealing and compression: After the PM80A vacuum pump sucks the material, it will use the sealing device to ensure that there is no leakage inside the pump body. Then, the pump will start to compress and move the sucked waste, pushing these materials into the storage device through an efficient mechanism.



Discharge process: After sucking and compressing the waste, the Italy PM80A vacuum pump sends the waste to the target treatment facility or storage through the discharge pipe or system. The discharge process can be adjusted according to demand to ensure that the waste is effectively treated.



 ITALY MORO PM80A vacuum pump

Cyclic operation: The Moro PM80A vacuum pump can be operated in a cyclic manner as needed, continuously sucking, compressing and discharging waste to ensure the continuity and efficiency of wastewater treatment operations. Its advanced working principle and design ensure stable and reliable operation, allowing the pump to operate smoothly in various environments and working conditions.



● Automatic Control and Monitoring:

In addition to the basic suction and discharge functions, ITALY MORO PM80A vacuum pumps may also be equipped with automatic control and monitoring systems to monitor pressure, flow and other parameters to ensure the normal operation of the pump. These systems can automatically adjust the operation of the pump as needed, improve efficiency and reduce the need for human intervention.



● Maintenance and Care:

In order to ensure the long-term stable operation of the PM80A vacuum pump, regular maintenance and care are essential. This includes cleaning, lubrication and replacement of parts to ensure that the pump can maintain optimal performance and extend its service life. Maintenance work also helps to reduce failure and repair costs, ensuring that the pump is always in optimal working condition.



8000L Sewage Tank

This 8000-liter sewage tank is one of the core components of the ISUZU vacuum suction truck, designed to provide a large-capacity storage space to accommodate wastewater and solid waste, thereby promoting efficient wastewater treatment operations. Constructed of corrosion-resistant materials, the tank has superior sealing and strength, ensuring that it will not leak during transportation, thereby reducing the risk of environmental pollution. The large capacity of 8000 liters makes it an ideal choice for handling large amounts of sewage, suitable for a variety of environments and usage scenarios.



The 8000-liter sewage tank is designed with convenient inlets and outlets to simplify the filling, discharging and cleaning processes, making it easy for operators to quickly fill and discharge wastewater during work and improve production efficiency. At the same time, the tank is also equipped with outlets and valves to ensure that wastewater can be effectively discharged and treated while preventing leakage and pollution.

Isuzu FVR 8000L sewer vacuum truck

Isuzu FVR PM80A vacuum pump tank truck

The efficient performance of the PM80A pump allows sewage to be quickly and stably pumped out of the sewage tank and transported to the designated treatment equipment or discharge point.



The 8000-liter sewage tank is designed to be simple and easy to use, easy to operate and maintain. Cleaning and maintenance of the tank is very important because it affects the efficiency and safety of wastewater treatment. The inner surface of the tank is smooth and easy to clean, which can reduce bacterial growth and odor release. In addition, the reliable design of the tank structure and connectors makes maintenance more convenient, and operators can easily carry out necessary inspections and repairs to ensure the long-term reliability and performance of the tank.



8000L sewage tank

Tank and hose system

The Isuzu new FVR 4x2 sewer suction truck is equipped with a large sewage tank that can accommodate a large amount of sewage. The tank is made of durable materials to withstand the corrosive effects of sewage. It also features a convenient drain valve that allows the operator to quickly and easily empty the tank.



The hose system is another key component of the truck. It includes a long, flexible hose that can reach deep into sewers and other tight spaces. The hose also comes with a powerful suction nozzle that can handle the most stubborn sewage clogs.

Hydraulic cylinder

Application scenarios

This Isuzu 8 cubic vacuum suction truck plays a key role in various wastewater treatment, cleaning and waste management scenarios, providing efficient and reliable waste treatment solutions. Its versatility and high performance make it an important tool for urban management departments, industrial enterprises, construction companies, sewage treatment plants and other organizations, helping to maintain environmental sanitation, protect water sources and promote social public health.



This Isuzu PM80A pump vacuum tanker truck is equipped with an Italian PM80A vacuum pump and plays an important role in the field of wastewater treatment and cleaning. Here are some of the main application scenarios of this vehicle:



1. **Urban environmental sanitation**: In urban environments, this vehicle can be used to clean drainage systems, rainwater pipes and sewage collection facilities. By sucking wastewater and solid waste, it ensures the sanitation and cleanliness of the urban environment.

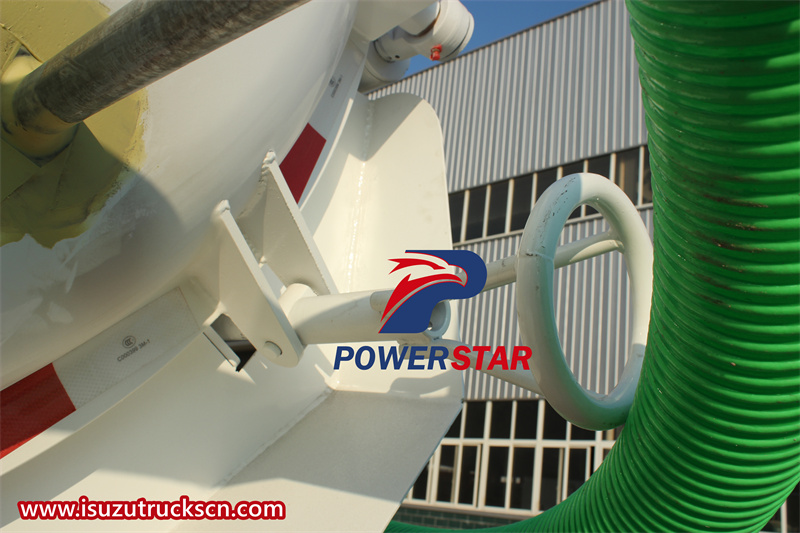

Tailgate, discharge valve, locking device, sewage suction pipe

2. **Industrial wastewater treatment**: This vehicle can be used for wastewater treatment work in industrial parks, production plants and other places. By sucking, transporting and discharging industrial wastewater, it helps protect the surrounding environment and water sources.



3. **Construction Site Cleaning**: This vehicle can be used to clean up sludge, wastewater, and other construction waste at construction sites and construction sites. By cleaning up in a timely manner, the construction site is kept clean and safe.



4. **Road and Drainage System Cleaning**: The PM80A Pump ISUZU Vacuum Suction Truck can be used to clean up roads, drains, and sewer systems. By sucking up debris and wastewater, roads and drainage systems are kept clear.



Operation sign of vacuum cleaner

5. **Wastewater Treatment Plant Support**: This vehicle can be used to collect and transport wastewater at sewage treatment plants. By collecting and transporting wastewater from various sources to treatment facilities, it helps to operate the sewage treatment system efficiently.



6. **Emergency Disaster Management**: After natural disasters, this vehicle can be used to clean up and treat wastewater, sludge, and solid waste. Through quick response and efficient operation, environmental damage caused by disasters is reduced.



7. **Agricultural Waste Management**: On farms and in the agricultural sector, the PM80A Pump ISUZU Vacuum Suction Truck can be used to treat waste such as agricultural wastewater, sludge, and animal manure. Help farms maintain environmental hygiene and production efficiency.

Secondary filter, spare tire

Overflow Valve
