Isuzu 100P 6cbm compactor rear loader

Isuzu 6cbm compactor rear loader is equipped with a 100P standard single-row cab. The body is made of special steel, with 4 sides and 5 bottoms. Isuzu 4KH1CN6LB engine, National VI emission 120 horsepower 88KW, Isuzu MSB five-speed transmission, with air conditioning, steering assist, ABS, Central locking, electric glass, multi-function LCD instrument panel, front axle 2.5 tons, rear axle 4.8 tons, standard 700R16 tires; bodywork effective volume 6cbm, Zhongmei multi-way valve, Hefei oil pump, CAN integrated electronic control, standard plating Zinc hydraulic oil pipe, different users can choose different bucket structures according to the garbage collection method.

Isuzu 100P 6cbm compactor rear loader also called Isuzu garbage compactor truck, Isuzu compactor garbage truck,Isuzu recycling rear loader，Isuzu waste compactor truck, Isuzu trash compactor, Isuzu trash crusher truck, Isuzu rubbish truck, Isuzu truck mouted garbage compactor,Isuzu 100P garbage disposal truck,Isuzu split body rear loader truck,Isuzu waste collection vehicle. The Isuzu 100P 6cbm compactor rear loader is used to collect,transport and clearing up wastes, avoid secondary pollution. The Isuzu 100P 6cbm compactor rear loader is a new type of environmentally friendly vehicle ,which is simple, efficient and environmentally friendly.

Isuzu 100P 6cbm compactor rear loader is widely used in sanitation organizations, municipal administration, mining areas, property areas, residential areas and other places where garbage is centralized.

I.Description of Isuzu 100P 6CBM Compactor Rear Loader

Key Features:

---- Using Japanese technology ISUZU ELF 100P Chassis , super power, larger displacement, with Stronger Engine performance.

---- Quality test from the production to the finish of the whole truck.

---- Professional and experienced technical team support to provide customized trucks with high quality & reasionalble price.

---- Genuine spare parts supply.

---- Prompt delivery. All the truck will be polished with wax before shipping and accordingly the truck type and destination port to choose the most suitable and cost-effective shipping way.

II. Specification of Isuzu 100P 6CBM Compactor Rear Loader

ISUZU 100P 6cbm 4x2 compactor rear loader
Mian Technology Parameter
Vehicle Model	PT5070ZYSQ
Driving Type	4×2,left hand drive
Color	White,yellow, can be your choose
Weights
Gross weight(kg)	7300
Curb weight(kg)	5280
Dimensions
Wheelbase(mm)	3360
Overall Dimension(mm)	6865×2050×2600
Box dimension	6 m3
Max speed(km/h)	95
Engine
Engine model	4KH1CN6LB(120HP)
Engine type	4 stroke water-cooled,inter-cooling
No. of cylinders	straight-4 cylinders
Displacement(L)	2.999L
Max. output (kw)	88kw
Emissions standard	Euro 6
Fuel	Diesel
Drive Line
Transmission	MSB 5-speeds ,5 forwards,1 reverse gear,manual operation
Steering	Power steering
Brake	Oil brake with vacuum pump
Cab
Air container	Have
Standard configuration	Sound,,parking sensors
Axle
Front axle	2.5 tons
Rear axle	4.8 tons
Tire specification
Tire specification	7.00-16 standard tire,6 tires+1 spare tire
8m3 garbage compactor truck
Box valume	8m3
Box material	Side 4mm,bottom 5mm
Sewage tanker	200L
Fill volume	1.2cbm
Loading time	8-10S
The cycle time of the loading	50-60S/per turn
Unloading model	Dump
Unloading time	30-40S
Hydraulic system pressure	16Mpa

1. We supply various series of Isuzu special vehicles, such as: 100P, 600P, 700P, KV100/600/800, M100/600, FTR, FVR, FVZ, NPR, ELF, VC66 levels, etc. all available.

2. The drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4 ,8x6

3. We can provide LHD (left hand drive) or RHD (right hand drive) vehicles.

4. we can do the designs according to the your requirement .

5. we can offer you the high quality & reasionalble price

6. We accept 100% inspection, welcome to our factory at any time.

7. promptly delivery. any order is welcome.

III. Details of Isuzu 100P 6CBM Compactor Rear Loader

●  Isuzu 100P 6cbm compactor rear loader photos for reference

Isuzu 100P 6cbm compactor rear loader produced by Powerstar adopted the Chinese popular chassis brand ISUZU with the same reliability and high performance as our industry-leading standard. Available in body sizes , with customized configuration to best meet your needs.

The Isuzu 6cbm garbage collection truck is composed of a sealed garbage container, tailgate, hydraulic system, and operating system. High-density, high-pressure hydraulic oil pipe. Electric control with manual control.

Technical drawing of Isuzu 4X2 100P 6cbm compactor rear loader

Product Features:

★. Making garbage collection simple: change the dirty appearance of the city and eliminate the secondary pollution;

★. High compression ratio and large loading capacity which is 2 times larger than usual garbage truck;

★. Easy Full Automatic Operation: electrical control system for loading and unloading operations.

★. One Person Operation: Reducing sanitation work, greatly improves the working efficiency.

★. Double Operation System: electrical control system and manual operation greatly improves the vehicle usage rate.

Isuzu 4x2 6cbm rear loader compactor

Garbage Loading and Unloading Process

Powerstar Corporation is a leader in the waste disposal industry with an excellent reputation for customer service and reliable production and rebuilds of garbage truck and packaging truck bodies. We specialize in the production of roll-off trucks, rear loaders, front loaders ,side loaders and other types of garbage, garbage and recycling trucks. If you are in the market for junk equipment, give powerstar a chance to win your business.

Isuzu 100P refuse compactor truck

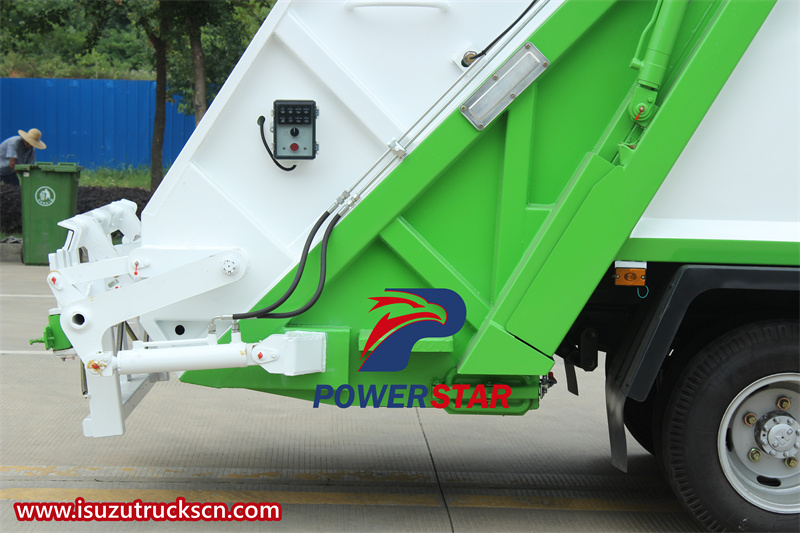

●  Isuzu 100P 6cbm compactor rear loader details

●  Isuzu 100P 6cbm compactor rear loader details

●  Isuzu 100P 6cbm compactor rear loader departure in batches
