ISUZU Fire Trucks, ISUZU Fuel/Water Tanker Trucks, Isuzu Road Sweeper, ISUZU Garbage compactor truck: Isuzu 600P water tender fire truck

The Isuzu 600P water tender fire truck is an efficient and reliable firefighting vehicle that is widely used in fire fighting work in urban and rural areas. The vehicle is based on the Isuzu 600P chassis and has been carefully designed and modified to have excellent off-road performance and powerful fire-extinguishing capabilities. It is equipped with a CB10/30 fire pump with a flow rate of 30L/s/1Mpa; a PS30W fire cannon with a range of at least ≥55m.

I. Description of Japan ISUZU 600P Water Tender Fire Truck

ISUZU water tender fire truck

Isuzu 600P water tender fire truck, also called Isuzu fire tender,Isuzu fire fighting tanker, Isuzu water tank fire truck, Isuzu fire appliance, Isuzu fire fighting engine, Isuzu fire-extinguishing rescue truck, Isuzu fire service truck,Isuzu fire rescue vehicle, is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.

Isuzu 600P water tender fire truck Key Features:
---- ISUZU chassis, perfect performance

---- ISUZU engine & gearbox, super powerful, no overhaul within 100,000 km.

---- Water tank and Foam tank capacity can be optional.Tank material can be Carbon steel, Stainless steel or Aluminum alloy.

---- Easy operation and easy maintenance.

---- Various types of fire equipment are available.

---- Extended model: water fire truck, Foam fire truck, Dry powder fire truck, Forest fire truck, water tower fire truck, Emergency rescue fire truck, Lighting tower fire truck.

II. Specification of Japan ISUZU 4*2 600P Water Tender Fire Truck

Chassis Specification
Truck model			PT5107GXFPM52
Cab			ISUZU 600P CABIN,2+3 seats
Driving Type			4*2 Left hand driving
Max Speed (km/h)			95
Overall dimension(mm)			680519602950
GVW( kg)			7000
Mass in working order ( kg)			4000
Wheelbase(mm)			3815
F/R overhang (mm)			1015/1890
Approach/Departure Angel			24/14
Tire			7.00R16 (6+1)
Clutch			Single-plate dry diaphragm spring clutch
Steering			Hydraulic steering with power assistance
Gear box			MSB 5-speed
Bridge	Front axle		2.5T
	Rear axle		4.8T
Enging	Model		4KH1-CN6LB
	Fuel Type		Diesel fuel
	Type		Water-cooled four-stroke,, direct injection, turbocharged
	Exhaust(ml)		2999
	Max output power/rotate speed (hp /rpm )		120/2900
	Max torque/rotate speed(N.m/rpm)		290/1500-2900
Braking system	Service Brake		Oil brake
	Park Brake		Spring energy
Eletric system			24v
Upper-Body specification
Tank	Structure	Welding, there is clapboard inner.
	Material	Water Tank	High quality carbon steel plate, anti-rust treatment
	Capacity	Total	3000L
		Water Tank	3000L
Equipment box	Equipment box: at the back of carriage, there are two-layer clapboard, can store equipment. There is safe ladder to up and down on the back of equipment box. Structure: whole frame is welded to ensure intension and rigidity. Material: frame is high quality steel, inner plague is aluminum embossed sheet, surface is anodic processed.
pump room	on the rear or central of truck, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch.
Special Parts Parameter	Fire Pump	Type	Normal pressure fire pump
		Model	CB10/30
		Flux	30L/S
		Pressure	1.0Mpa
	Fire Monitor	Type	Water
		Model	PS30W
		Flux	30L/S
		Pressure	1.0Mpa
		Range:	≥55m
Additional drive system	Use sandwich PTO, splashing-type lubricate, can put out fire when driving.
Additional operation system	PTP operation lever, fire pump valve operation lever, electronic control button, Hand accelerator operation lever and son on
Additional cooling system	The additional cooling system uses a mandatory water cooling for PTO. Can effectively control the fire truck equipment to extend the service life of equipment because of long hours of continuous work related to the heating
Additional Electrical system system	warning light ,warning sirens
	Pump pneumatic control valve switch,Pump speedometer,Electronic level gauge
	Fire lights, pump room lights, equipment box lights
Additional instrumentation	pressure gauge
	speedometer
	level gauge
	vacuum gauge
Carriage	Carriage is made of high quality steel and Aluminum embossed sheet
Rolling shutter door	Light and high quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with one set lock.
color	The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck.

1.We supply various series of Isuzu special vehicles, such as: 100P, 600P, 700P, KV100/600/800, M100/600, FTR, FVR, FVZ, NPR, ELF, VC66 levels, etc. all available.

2.the drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4
3.We can provide LHD (left hand drive) or RHD (right hand drive) vehicles .
4.Water, foam ,powder together type, Customized.

III. Isuzu 600P water tender fire truck Details

● Isuzu 600P water tender fire truck photos for reference

As an important member of fire extinguishing and emergency rescue, the working principle of the Isuzu 600P water tank fire truck involves the synergy of multiple complex systems and components. Its main working principles will be introduced in detail below.

1. Water pump starting and control:

·Water tank fire trucks are equipped with special water pumps to pump water out of the tank and pressurize it. The water pump is usually started via a control panel in the cab or a remote control.

·Firefighters can adjust the speed of the water pump as needed to control the water flow and spray pressure.

·In order to ensure safety, the water pump usually needs to be preheated before starting to avoid damage caused by sudden start.

2. Water tank storage and supply:

·The water tank is the main water storage container of the fire truck, usually made of stainless steel or high-strength plastic to ensure its sealing and corrosion resistance.

·The capacity of the water tank varies depending on the vehicle model and purpose, but is usually sufficient for most firefighting tasks.

·When the water pump is started, the water in the tank is pumped out through the pipe, pressurized and delivered to the fire monitor or other fire extinguishing equipment.

3. Fire monitor spray operation:

·The fire cannon is the main fire extinguishing tool of the water tank fire truck. By adjusting the angle of the muzzle and the spray pressure, effective coverage of the fire source can be achieved.

Spraying operations are usually performed by firefighters operating handles or remote controls. In some advanced models, this is also possible via a computer integrated into the cab

The system performs automatic control.

Firefighters can also choose different spray modes according to their needs, such as direct spray, scattered spray or foam spray.

4.Pipeline connection and layout:

·The internal layout of the water tank fire truck has a complex pipeline system, which is used to transport water from the water tank to the water pump, and then to the fire monitor after pressure regulation.

·Pipes are usually made of corrosion-resistant and high-temperature-resistant materials to ensure normal operation in various harsh environments.

·To facilitate operation and maintenance, piping layouts are usually designed to be clear and easily accessible.

5. Pressure regulation and monitoring:

·The pressure regulation system is the key to ensuring that fire water can be delivered to the fire monitor at appropriate pressure. The system usually includes pressure sensors, control valves, pressure reducing valves and other components.

·The pressure sensor monitors the water pressure in the pipeline in real time and transmits the data to the control system. The control system automatically adjusts the control valve according to the preset pressure range to ensure that the water pressure is within the appropriate range.

6. Emergency braking and safety:

· In an emergency, the driver can quickly slow down or stop through the braking system to ensure that the fire truck can quickly respond to the fire scene or avoid accidents · The fire truck is also equipped with safety devices, such as warning lights, reversing radar, etc., to improve driving safety.

7. Power source and auxiliary equipment:

·Water tank fire trucks are usually equipped with powerful diesel engines or electric motors to provide sufficient power.

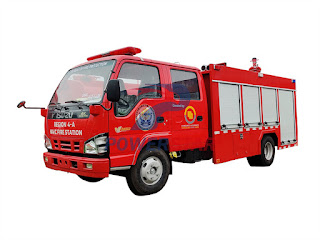

isuzu fire truck Isuzu water tender fire truck front view
