Isuzu 4HK1 engine garbage compactor truck

 Isuzu 600P garbage compactor truck adopts Isuzu chassis, 3815mm wheelbase, National VI 4KH1CN5HS engine (Isuzu 130 horsepower), adopts a curved box with a volume of 8 square meters, and is made of Q345 high-quality high-strength manganese steel plate. The box is fully welded and the edges are Four bottoms and five materials, Xingguang oil cylinder, Hefei oil pump, Hunan Honghui multi-way valve (Mei multi-way valve can be selected), high-density hydraulic oil pipe, Jiashan power take-off, flashlight integrated PLC single-sided electronic control operation with wireless remote control, filling The lift is equipped with a hydraulic locking device and a light at the rear to facilitate night work. The rear flip can be used to hang two 240L national standard plastic trash cans. A pneumatic sealing cover is installed at the rear of the box.

Isuzu 4HK1 engine garbage compactor truck also called Isuzu waste compactor truck, Isuzu garbage compactor truck, Isuzu trash compactor, Isuzu refuse compactor truck, Isuzu compactor garbage truck, Isuzu rear loader compactor truck, Isuzu rear loader garbage truck,Isuzu waste collection vehicle.The Isuzu 4HK1 engine garbage compactor truck is a vehicle specially designed for garbage collection and processing, and is usually used to compress and transport garbage. Such vehicles usually have garbage collection and compression functions, which can effectively reduce the volume of garbage and improve the efficiency of garbage transportation. It is a very practical municipal waste disposal equipment.

I. Description of Isuzu 4HK1 Engine Garbage Compactor Truck

Key Features:

---Various size body from 3cbm to30cbm.

---ISUZU 600P engine,strong power;reliable performance. no overhaul,within 200000km.

---Europe design,Electric-pneumatic control for easy operation.

---Different rear lifting systerm are optional.

---Steady construction,Optional 400L Sweage tank avoid second pollution.



II. Specification of  Isuzu 4HK1 Engine Garbage Compactor Truck

ISUZU 4x2 130hp 8cbm garbage compactor truck parameters
General	Model	PT5070GYS
	Chassis Brand	ISUZU 600P chassis
	Overall Dimension	7150*2210*2640 (mm)
	Wheelbase	3815mm
	Total Weight	7300KG
	Kerb Weighr	5420KG
	Garbage Container Capacity	8 CBM
	Drive Type	4x2, left hand drive
	Drive speed(km/h)	100
Cabin	Brand: ISUZU
	600P single row cab, forward control type, all welded steel cab of tilt type, rear mechanical cab suspension, adjustable driver seat
	2 seats, with air conditioner, USB connector radio
Engine	Brand	ISUZU
	Model	4KH1CN5HS, EURO V
	Emission	2999 ml
	Type	4-stroke direct injection ,  4-cylinder in-line with water cooling, turbo-charging and inter-cooling,high pressure common rail type
	Horse Power(HP)	130 HP
Gearbox	MSB 5-speed,manual
Tire	7.00R16, 6 pcs+1 spare tire
Axle	Front axles 2.5t, rear axle 4.8t
Max Input Torque	230N.m
Material	Carbon steel and high tensile steel
Standard equipment	1. Dustbin volume: 8m³ 2. hydraulic control device
Brake Type	Oil brake
Hydraulic Pump	China top brand
Hydraulic Pressure	16Mpa
Control System	Manually and electrical control

 1. We supply various series of Isuzu special vehicles, such as: 100P, 600P, 700P, KV100/600/800, M100/600, FTR, FVR, FVZ, NPR, ELF, VC66 levels, etc. all available.

2. The drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4

3. We can provide LHD (left hand drive) or RHD (right hand drive) vehicles.

4. Be designed according to your requirement .

5. Small order can be accepted.

6. We accept 100% inspection, welcome to our factory at any time.

7. 12 month quality guarantee term.



III. Details of  Isuzu 4HK1 Engine Garbage Compactor Truck

 ● Isuzu 4HK1 engine garbage compactor truck photos for reference

PT5070GYS compression garbage truck is a new generation of rear-loading compression garbage truck produced by POWERSTAR. The vehicle is modified based on the Isuzu 600P chassis and equipped with components such as a compactor, a tailgate, a push shovel, a loading mechanism, a hydraulic system, and an electronic control system. The vehicle adopts rear-mounted two-way compression technology, has high operating efficiency, simple and beautiful appearance, excellent performance, and user-friendly control and operation methods. The core components such as hydraulic and electrical components are made of high-quality components and have high operational stability. It is a reliable, efficient, simple and convenient garbage collection and transfer vehicle.

Isuzu garbage compactor truck in our plant

The characteristics of the Isuzu 4HK1 engine garbage compactor truck produced by Powerstar: simple and efficient garbage collection method, manual/automatic operation mode, and peristaltic two-way compression function, high compression ratio, large loading capacity, good power and environmental protection, and vehicle utilization rate High, the overall performance can reach the domestic advanced level.

The vehicle has the following advantages:

(1) Strong compression force: The vehicle uses push shovel back pressure and bidirectional compression function (many domestic compression vehicles do not have this function). The compression ratio can reach more than 1:2.5. After compression, the domestic waste can reach 600~ More than 800Kg/cubic meter.

(2) Use computer three-dimensional simulation software to design and scientifically analyze and calculate the force on the movement of garbage. A garbage bin with a rectangular structure, with a flat bottom surface and arc-shaped surfaces on the side and top surfaces, has a beautiful appearance, light weight, good stress resistance, and no deformation. , good rigidity, optimized push blade and scraper structure.

(4) Lightweight: The main components of the trash bin, push shovel, and loader are made of Q345A high-strength manganese steel, which has a solid structure, light weight, and high strength.

(5) Environmental protection: In view of the large amount of sewage produced after garbage compression, a highly sealed compartment and back door are designed, and a large-capacity closed sewage tank is designed. Stainless steel ball valves are installed on both sides of the sewage tank to facilitate the discharge of sewage and avoid Secondary pollution caused by sewage floor leakage.

(6) Reliability: The car body is made of high-quality national standard carbon steel plates and high-strength alloy steel plates produced by Wuhan Iron and Steel Co., Ltd., and the core components are all first-line brand accessories to ensure the service life and reliability of the entire vehicle.

(7) Convenient operation control: The operation control box is installed in the cab and the rear of the vehicle respectively. The operation control box in the cab can control the pushing and unloading and select the operation mode, and the operation control box at the rear of the vehicle controls the pressing and filling mechanism and lifting mechanism. The operation of the bucket mechanism is very convenient; especially in landfills, workers can complete the unloading operation without getting out of the car.

(8) Advanced electronic control system and safety: imported PLC (programmable controller) integrated control is used. The control circuit is generated in the PLC, and a logic loop is used to ensure that each operation instruction is executed in sequence. There are only external line connections, which reduces It reduces the failure rate, avoids accidents caused by misoperation, and improves reliability; the specially set emergency brake button can stop the garbage filling operation device in any state or position, and there is a hydraulic pressure in the lifting filler. The safety circuit prevents the oil pipe from bursting and the filler from suddenly falling, causing serious accidents and ensuring the safety of workers and equipment.

(9) High operating efficiency: one cycle time of filling operation is less than 30 seconds, one cycle time of unloading operation is less than 45 seconds, and the filling bucket capacity is large.

(10) Economy: The engine power output control, that is, the throttle control, realizes fully automatic control through the electrical system, ensuring that the engine can automatically select acceleration and idle states under various operating conditions of the garbage truck, avoiding power loss, system heating, and fuel consumption. Reduced and economical.

(11) The paint has high smoothness and strong adhesion. The tank body and metal accessories of this type of vehicle have been shot blasted, sprayed with polymer primer and high-quality topcoat. It has strong adhesion, good corrosion resistance, uniform paint film, bright and lasting color, and can withstand moisture, dust, and salt spray. and other adverse environments.

(12) High cost performance: Our company’s compressed garbage truck products can reach the advanced level of similar domestic products, are affordable and have outstanding cost performance.

Isuzu 600P garbage compactor truck for export

Isuzu 4x2 garbage compactor truck

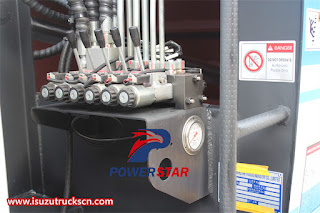

● Isuzu 4HK1 engine garbage compactor truck details

● Isuzu 4HK1 engine garbage compactor truck departure in batches
