ISUZU FVR 14cbm waste disposal truck

 Customized Isuzu FVR waste disposal truck for hot sale, Isuzu FVR 4*2 drive 6 wheeler truck chassis, 6HK1-TCG61 engine with 240HP, fast 8-shift gear box, arc-shape compactor body with top Chinese brand hydraulic cylinders, rear tilting device can be lifting 240L, 360L, 660L, 770L, 1100L international garbage bins, high strength Q345 steel body with customized 14 CBM capacity.

Isuzu FVR 14cbm waste disposal truck also called Isuzu garbage compactor truck, Isuzu compactor garbage truck,Isuzu recycling rear loader,Isuzu refuse compactor truck, Isuzu trash compactor, Isuzu trash crusher truck, Isuzu rubbish truck, Isuzu truck mouted garbage compactor,Isuzu garbage disposal truck,Isuzu refuse collection truck,Isuzu waste collection vehicle. The Isuzu FVR 14cbm waste disposal truck is a type of specialized vehicle designed for the collection and transportation of solid waste, such as household and commercial trash. The vehicle is widely used in sanitation organizations, municipal administration, mining areas, property areas, residential areas and other places where garbage is centralized.

I.Description of Isuzu FVR 14CBM Waste Disposal Truck

Key Features:

---- Using Japanese technology ISUZU FVR Chassis , super power, larger displacement, with Stronger Engine performance.

---- Quality test from the production to the finish of the whole truck.

---- Professional and experienced technical team support to provide customized trucks with high quality & reasionalble price.

---- Genuine spare parts supply.

---- Prompt delivery. All the truck will be polished with wax before shipping and accordingly the truck type and destination port to choose the most suitable and cost-effective shipping way.



II. Specification of Isuzu FVR 14CBM Waste Disposal Truck

Manufacturer	POWERSTAR Trucks
Item	ISUZU FVR Waste Disposal Truck
Brand	Isuzu
Model	PT5160ZYSQ
Truck Chassis
Specification	Overall dimensions	8900*2500*3380 mm
	Gross weight	18,000 kg
	Kerb weight	9,600 kg
	Wheelbase	4,500 mm
	Driving type	4*2
	Chassis model	Isuzu FVR medium-duty
	Tire size	295/80R22.5
	Passengers in cab	3
Engine	Engine model	6HK1-TCG61
	Type of fuel	Diesel
	Power	240HP
	Max speed(Km/h)	110
	Gearbox	FAST 8-shift gearbox
	Emission standard	Euro 5/6
Upper Structure
Compactor Body performance	Tank Capacity	14cbm
	Tank Material	4mm high strength steel Q345, with inside and outside antirust treatment
	Rear Hopper	0.8-1.2 CBM
	Waste Water Tanker	100 + 200 Liters
	Body Shape	Arc Shape as standard
	Control System	CAN-BUS electric control
		Hydraulic Valve control
	Control Panel	English or Your language
	Discharge Model	Horizontal Ejection
	Tilting Device	Standard 240L * 2
		Customized 360L, 660L, 770L, 1100L bins
	Painting	Two primers, and one final paint coating
	Color & LOGO	According to wish
Factory standard	“U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and   rubber flaps...
Documents	English operation manual, Spare parts list, and all necessary export docs.
Optional equipment	1, Back Alarm and Camera can be equipped 2, Italy brand multi-way valve can be optional 3, 660L, 770L, 1100L bins lifting device can be optional 4. Front snowing sweeping device can be optional

1. We supply various series of Isuzu special vehicles, such as: 100P, 600P, 700P, KV100/600/800, M100/600, FTR, FVR, FVZ, NPR, ELF, VC66 levels, etc. all available.

2. The drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4 ,8x6

3. We can provide LHD (left hand drive) or RHD (right hand drive) vehicles.

4. we can do the designs according to the your requirement .

5. we can offer you the high quality & reasionalble price

6. We accept 100% inspection, welcome to our factory at any time.

7. promptly delivery. any order is welcome.

III. Details of Isuzu FVR 14CBM Waste Disposal Truck

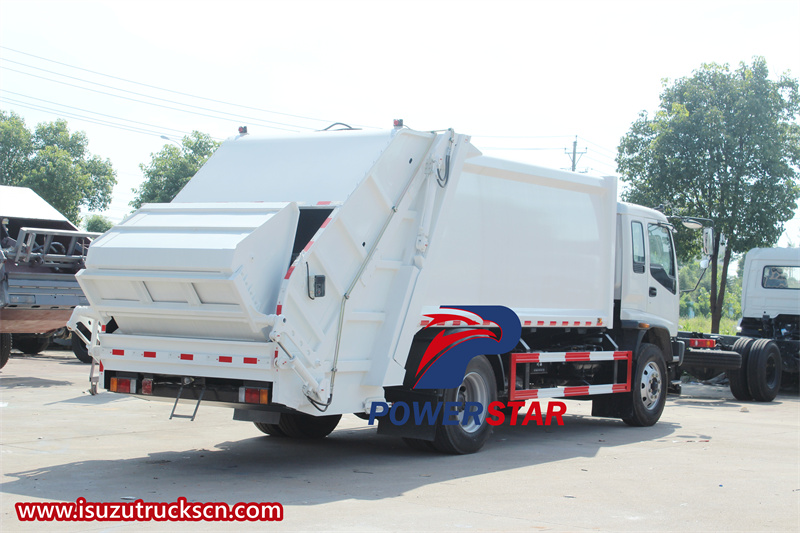

●  Isuzu FVR 14CBM waste disposal truck photos for reference

The ISUZU FVR 14CBM waste disposal truck is a new type of sanitation vehicle specially used for collecting and transporting garbage. It mainly collects and transports urban domestic garbage and is an ideal garbage collection and transportation vehicle for urban sanitation departments, factories, mines, and docks. The refuse body is made of high-quality, wear resistant steel, arc-shaped, good force, no deformation, with large loading capacity. Manual and CAN bus control, less wiring, low failure rate, convenient maintenance.

The ISUZU FVR 14cbm waste disposal truck is an excellent choice for waste management companies and municipalities that require a reliable and efficient vehicle for the collection and transportation of solid waste. With its advanced technologies, exceptional performance, and rugged durability, the Isuzu garbage compression truck provides customers with maximum value over its lifespan. Whether it's collecting household or commercial waste, the Isuzu garbage compactor truck is designed to meet the demands of businesses that require a dependable and capable vehicle for their operations.

Technical drawing of Isuzu waste disposal truck

vehicle accessories

Diffierent bin optional

FEATURES：

-The refuse body is gas shielded welded to ensure no deformation during the press-fitting operation.

-New type with an embedded slider mechanism, with the connecting shaft, wear-resistant, no deformation

-Installed back pressure valve, two-way compression, the compression ratio reaches 0.6~0.8t/m3.

-The balance valve can ensure the synchronization of the cylinder action, effectively protect the cylinder, and eliminate potential safety hazards.

-CAN bus control, double control system; with automatic and manual operation.

Isuzu FVR 14cbm waste disposal truck

Isuzu FVR 4x2 garbage compactor truck

●  Isuzu FVR 14cbm waste disposal truck details●  Isuzu FVR 14cbm waste disposal truck departure in batches
