Isuzu Refuse Collection Truck

Isuzu refuse collection truck adopts the original Isuzu FTR chassis, Isuzu FTR row half cab, 205HP National VI Isuzu 4HK1-TC60 engine, Isuzu MLD six-speed transmission, 4500mm wheelbase, 295/80R22.5 steel wire tires, front axle 6.3 tons, rear axle 13 tons, original air conditioning, steering assist, clutch assist, ABS anti-lock braking system, shock-absorbing seats, air brakes, vacuum booster pump, and USB interface radio;with 10 cubic meter volume box, rear with waste bin flip device, can flip 120L/240L/660L waste bins, control panel+manual lever+inside cab controlled.

Isuzu refuse collection truck also called Isuzu garbage compactor truck, Isuzu rear loader compactor, Isuzu compactor garbage truck, Isuzu recycling rear loader，Isuzu waste compactor truck, Isuzu trash compactor, Isuzu trash crusher truck,Isuzu refuse compactor truck, Isuzu rubbish truck, Isuzu truck mouted garbage compactor,Isuzu split body rear loader truck,Isuzu waste collection vehicle. The Isuzu refuse collection truck is a special purpose vehicle used to collect and transport all kinds of garbage in municipal sanitation department.

I.Description of Isuzu Refuse Collection Truck

Key Features:

---- ISUZU chassis, perfect performance

---- ISUZU FTR engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Compression body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Various types of refuse container lifter are available.

II. Specification of Isuzu FTR Refuse Collection Truck

Isuzu 4x2 FTR 10cbm refuse collection truck
Vehicle Description
Vehicle model	PT5180GYSQ
Overall dimensions	8260x2495x2970mm
GVW	14000kg
Curb weight	8330kg
Loading weight	5500kg
Chassis brand	ISUZU
Traction type	4*2; Left hand drive

Up-parts Specification
Dustbin volume	10cbm
Material & thickness	Side	4mm Q345
	Bottom	5mm Q235A
Type of Rear garbage filler (Rear Turnover device)	1.Hanging trash bin
	2.Swing arm
	3.Dustpan

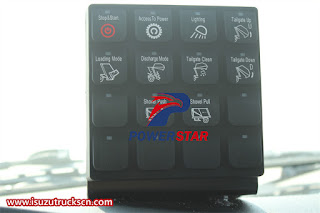

Control system	Electrically Controlled Hydraulic + Manual Hydraulic
Type of compactor	Fill, push and compression
Garbage compact density	0.9±0.05 T/m³
Sewage water tank	200 liters
Max compact	≥141 KN
Max push	≥189 KN
Tailgate ascending Angle	~95°
Cycle of loading	≤40s
Cycle of discharge	≤45s
Hydraulic pressure system working pressure	16 Mpa
PLC	Importation PLC (Programmable controller)
Gear pump	Made in China
Multi-way valve	Air controlled, Made in China
Hydraulic oil cylinder	Made in China
Hydraulic rubber hose	Made in China

Chassis Description
Chassis model	Isuzu FTR
Cab	One and half row, with A/C
Wheelbase	4500mm
Tire specification	295/80R22.5
Tire quantity	6+1 units
Engine	Engine model	4HK1-TC60
	Emission level	Euro 5/6
	Displacement/output	5193ml/150kw
	Horse power	205HP
	Max speed	95km/h
Gear box	Model	ISUZU MLD
	Number of gears	6 forward gears& 1 reverse
Brake system	Full air brake
Axle	Front	6.3T
	Rear	13T
Fuel tanker	Type	Stainless steel tanker, with lockable cap
	Capacity	300L

1. We supply various series of Isuzu special vehicles, such as: 100P, 600P, 700P, KV100/600/800, M100/600, FTR, FVR, FVZ, NPR, ELF, VC66 levels, etc. all available.

2. The drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4 ,8x6

3. We can provide LHD (left hand drive) or RHD (right hand drive) vehicles.

4. we can do the designs according to the your requirement .

5. we can offer you the high quality & reasionalble price

6. We accept 100% inspection, welcome to our factory at any time.

7. promptly delivery. any order is welcome.

III. Details of Isuzu Refuse Collection Truck

● Isuzu refuse collection truck photos for reference

The Isuzu FTR 10 cbm compactor garbage truck is an efficient and practical garbage disposal vehicle. It combines the durability of the Isuzu FTR chassis with the efficiency of compressed garbage technology to provide an efficient solution for urban garbage disposal.

Technical drawing of Isuzu FTR 4x2 10cbm refuse collection truck

♦ First of all, the Isuzu FTR refuse collection truck has strong power and stable handling performance. Its power system is powerful and can adapt to the needs of various roads and garbage disposal scenarios, ensuring that the vehicle can operate stably in various working environments. At the same time, the chassis design is sturdy and has good load-bearing capacity and stability, ensuring the smooth operation of the vehicle during garbage disposal.

♦ Secondly, the compression performance of this model is one of its highlights. An efficient compression system can effectively compress garbage, reduce its volume, and improve its carrying capacity. This not only reduces the number of transportation times and costs, but also improves the efficiency of waste disposal. At the same time, the compression process is stable and reliable, ensuring that garbage is compressed evenly and avoiding excessive pressure or damage to garbage disposal equipment.

♦ In addition, the Isuzu FTR refuse collection truck also has high environmental performance. It uses advanced emission control technology to reduce environmental pollution. At the same time, the closed garbage storage and transportation system also effectively prevents garbage from scattering and flying during transportation, further reducing the negative impact on the environment.

♦  Finally, this model also focuses on ease of operation and comfort. Equipped with an intelligent control system, the operation is simple and intuitive, reducing the difficulty of operation. At the same time, the vehicle's interior design is reasonable, providing a comfortable driving and working environment, allowing operators to carry out garbage disposal work more easily.

Isuzu 4x2 FTR rear loader compactor truck for sale

Isuzu FTR 10cbm waste compactor truck for export

The Isuzu FTR refuse collection truck produced by Powerstar Company has become an ideal choice for urban garbage disposal work due to its powerful power, stable control performance, efficient compression performance, environmental protection performance, as well as ease of operation and comfort. Whether in terms of performance or practicality, it can meet users' high requirements for garbage disposal vehicles.

Isuzu FTR refuse collection truck structure diagram

●  Isuzu refuse collection truck details

●  Isuzu refuse collection truck departure in batches
