Isuzu 4x4 off road truck chassis

 Isuzu 4x4 4 wheels off road truck chassis,it is equipped with a dynamic 4x4 drive system,single row,single rear wheel,4HK1-TCG61 engine 190HP,3815mm wheelbase,this chassis is capable of handling long journeys and challenging terrain without breaking a sweat.Its reliability and robustness make it ideal for explorers and professional users.

Isuzu 4x4 off road truck chassis also called Isuzu 700P 4x4 off-road truck chassis,Isuzu NPR 4WD off road truck chassis,Isuzu 700P All-wheel drive off road truck chassis,Isuzu 700P 4 wheel 4WD off-road truck chassis.The Isuzu chassis epitomizes rugged durability and off-road capability. With its single-row, single rear-wheel configuration, this beast is engineered to conquer challenging terrains with ease. Built on a sturdy frame, the Isuzu 4x4 off road truck chassis ensures stability and strength, making it ideal for rough off-road adventures.

Equipped with a dynamic 4x4 drive system, the Isuzu 4x4 off road truck chassis excels in traversing rugged landscapes, steep inclines, and water obstacles. Its powerful engine delivers ample torque and horsepower for exceptional performance. The suspension system absorbs shocks, provides stability, and enhances handling on uneven surfaces.



Combining reliability, durability, and off-road prowess, the Isuzu 4x4 off-road truck chassis is a versatile and formidable companion for off-road enthusiasts and adventurers seeking thrilling escapades in the great outdoors.

Isuzu 700P 4 wheel 4x4 off road truck chassis
Chassis Model	Isuzu 700P
Driving Type	4x4,Left Hand Drive
Overall Dimension（L*W*H）	6980*2170*2410mm
GVW	10550Kg
Curb Weight	3400Kg
Axle loading:	3350/6650Kg
Wheelbase	3815mm
F/R Track	1680/1680mm
Approaching Angle/Departure Angle(o)	20/17
Cab	Single,with 3 seats
Tire No.	4+1
Tire	235/75R17.5
Color:	Optional
Max Speed（Km/h）	110Km/h
Engine
Engine System	4 Stroke, High Pressure Common Rail, Inter-cooling Turbo-Charged, 4 Cylinders
Emission Route	DPF
Model	4HK1-TCG61
Fuel Type	Diesel Engine
Max output	139Kw
Horsepower：	190HP
Max Torque	507N.m/2600rpm
Emission Standard	Euro V/VI
Displacement:	5193ml
Transmission:
Model:	MLD-6 speed
Type	Manual
Forward/Reverse	6F/1R
Brake System:
Service Brake	Dual Circuit Compressed Air Brake
Parking Brake	Spring Energy, Compressed Air Operating on Rear Wheels
Auxiliary System	Engine Exhaust Brake
Electrical System
Battery	2*12-70Ah
Alternator	28V-70Ah
Starter	24V/7.5Kw
Cabin
Single Cabin with Air Conditioner
Other Equipment:
Power Steering, ABS, Maintenance Free Battery, Retro-reflective marking

Designed with a single-row, single-rear-wheel configuration, the Isuzu 4X4 off-road truck chassis represents a rugged and versatile platform designed to tackle challenging terrains and a variety of applications.

The Isuzu 4x4 off-road truck chassis represents the pinnacle of rugged engineering, designed to conquer the toughest terrains with unmatched grit and determination. This single-row, single-rear-wheel behemoth embodies durability, reliability, and pure off-road capability, making it a formidable contender in the world of adventure and exploration.

Design and Construction

● Built to withstand the rigors of off-road driving, the Isuzu 4X4 off road truck chassis features a sturdy frame that provides a solid foundation for the entire vehicle. The single-row design optimizes weight distribution, enhancing stability and handling on uneven surfaces. The single rear-wheel configuration, while less common in some off-road vehicles, offers unique advantages such as increased ground clearance and maneuverability in tight spaces.



● The chassis is constructed from high-strength steel to ensure durability and longevity even in extreme conditions. This material choice also contributes to the overall strength of the vehicle, allowing it to carry heavy loads with ease. The chassis is designed to withstand the shocks, impacts and vibrations inherent to off-road driving, ensuring the vehicle remains reliable and functional even after extended use.



Drivetrain and Performance

● At the heart of the Isuzu 4WD off road truck chassis is a powerful engine that delivers ample torque and horsepower to tackle steep hills, rocky trails and other obstacles. The engine is paired with a durable drivetrain that provides smooth shifting and reliable performance even in the most demanding situations. The 4X4 drive system ensures the vehicle has excellent traction and stability on slippery or loose surfaces, allowing it to traverse the most challenging terrain with ease.



● The chassis is also designed to accommodate a wide range of tire sizes and types, including off-road pattern tires that provide excellent grip and traction on harsh surfaces. The tires are mounted on rugged wheels that can withstand the rigors of off-road driving, ensuring the vehicle remains maneuverable even in the harshest conditions.



Technical drawing of Isuzu 700P 4x4 3815mm wheelbase off road truck chassis

Technical drawing of Isuzu 700P 4x4 4175mm wheelbase off road truck chassis

Off-Road Capabilities

● The Isuzu 4WD off road truck chassis is designed for off-road use with features that enhance its capabilities in challenging environments. The increased ground clearance provided by the single rear wheel configuration enables the vehicle to traverse obstacles that would otherwise be impassable. Its single-row configuration allows for agile maneuverability, while the single rear wheel layout enhances traction and stability, ensuring a steady grip on the toughest trails.

● The chassis also features a high ground clearance exhaust system to prevent damage from rocks and other debris, ensuring the engine is protected and operating properly.



● In addition to its physical attributes, the chassis is also equipped with advanced features that further enhance its off-road capabilities. These include a part-time 4WD system that allows the driver to switch between 2WD and 4WD modes as needed, ensuring optimal traction and fuel efficiency. The vehicle is also equipped with a differential lock that can be engaged when needed, providing more traction and control in difficult situations.

Suspension and Handling

Designed for optimal performance, the Isuzu 4x4 chassis' suspension system absorbs shocks, maintains stability, and provides a smooth ride over rough surfaces. The chassis' single-row, single rear wheel configuration plays a vital role in enhancing its handling capabilities, allowing it to navigate tight corners and rough terrain with agility and precision.

Customization and Versatility

The Isuzu 4X4 off-road truck chassis is highly customizable, allowing owners to tailor the vehicle to their specific needs and preferences. The chassis can be equipped with a variety of accessories and upgrades, including winches, light bars, and other equipment that enhance its performance and functionality. The vehicle can also be customized with a variety of body styles and colors, allowing owners to express their own personality and style.

Isuzu 700P all-wheel drive off-road chassis plays an important role in many fields and scenarios with its excellent off-road performance, strong carrying capacity and wide range of uses. The following are its usage scenarios:



1. Off-road adventure and leisure:

It is suitable for off-road enthusiasts to carry out long-distance crossing, desert exploration, mountain forest off-road and other activities. Its powerful four-wheel drive system and high ground clearance can easily cope with complex and changeable terrain, providing excellent passability and stability.

2. Military and rescue:

In the military field, this vehicle is often used as a patrol vehicle, command vehicle or rescue vehicle, which can move quickly in harsh battlefield environments and perform various tasks. At the same time, its sturdy body and powerful power system are also suitable as a rescue vehicle to provide rapid response and support in natural disasters or emergencies.

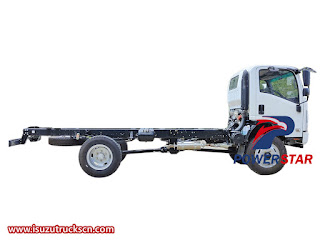

Isuzu 700P 4x4 off-road truck chassis

3. Engineering operations:

In the field of engineering construction, this vehicle can be used to transport heavy equipment and materials, such as building materials, mechanical equipment, etc. Its strong carrying capacity and off-road performance can meet the complex and changeable needs of the engineering site.

4. Agriculture and forestry:

In the fields of agriculture and forestry, this vehicle can be used for tasks such as farmland operations, forest patrols and timber transportation. Its four-wheel drive system and durable chassis structure can adapt to muddy, rugged fields and forest roads.

5. Special operations:

It can also be used in some special industries, such as oil exploration, geological surveys, mineral mining, etc. Its strong off-road capability and durability can meet the needs of these industries working in remote areas.

Isuzu 700P 4WD off road truck chassis front view

Isuzu 700P 4WD off road truck rear view

Isuzu 700P 4x4 off-road truck chassis steering wheel

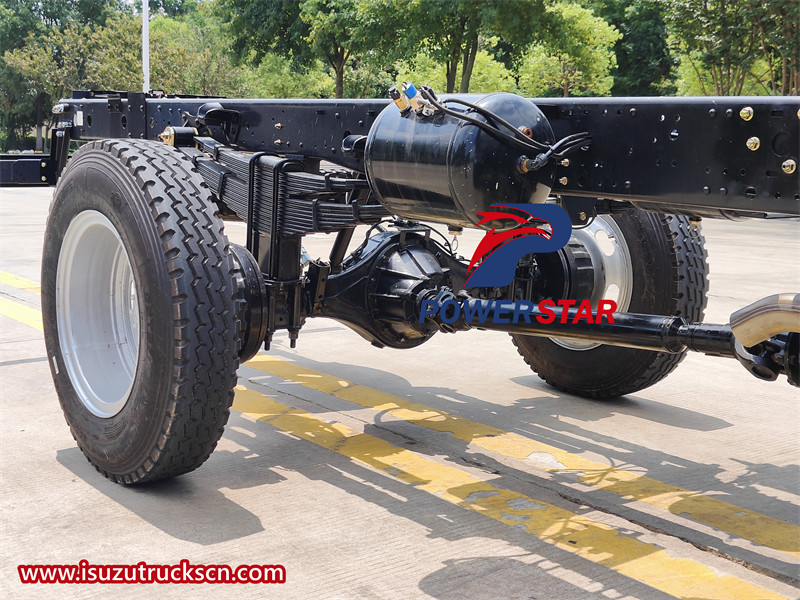

Isuzu 700P 4x4 off road truck chassis details

Isuzu 700P 4x4 off road truck chassis details

Isuzu 700P 4x4 off road truck chassis details
