Isuzu 4x4 drive fire department firefighting pick up

 Isuzu's all-wheel drive pickup fire truck is a professional firefighting equipment designed to cope with various fire and emergency rescue situations. The vehicle uses advanced four-wheel drive technology to improve emergency response capabilities and ensure efficient operation of fire and disaster scene rescue work. It is suitable for various roads and environments, providing firefighters with rapid response and effective firefighting support.

Isuzu 4x4 drive fire department firefighting pick up also called Isuzu 4WD pickup fire truck,Isuzu 4x4 fire department emergency rescue pickup fire engine,is a special firefighting vehicle carefully built by Isuzu Motors combining the high mobility of pickup trucks with the professional performance of fire trucks. This model not only inherits the durability and efficiency of the Isuzu brand, but also provides the fire brigade with strong support for rapid response and efficient firefighting in complex environments through specially customized four-wheel drive system and professional firefighting equipment.The Isuzu 4x4 drive fire department firefighting truck stands as a versatile and essential tool within the firefighting arena, blending agility, power, and specialized features to effectively combat emergencies in diverse environments.

Key features:

---- ISUZU pickup chassis, perfect performance

---- ISUZU engine & gearbox, super powerful, no overhaul within 100,000 km.

---- Water tank and Foam tank capacity can be optional.

---- Easy operation and easy maintenance.

---- Various types of fire equipment are available.

This firefighting pickup thrives in urban, rural, and wildland settings. In urban locales, its maneuverability shines, deftly navigating through narrow streets inconducive to larger firefighting vehicles. Conversely, rural and wilderness areas benefit from its off-road prowess, pivotal during wildfire containment or emergencies in remote regions. Versatility defines its adaptability, making it a coveted asset across varied landscapes.

Isuzu 4x4 drive fire department firefighting pick up
General	Vehicle Brand	POWERSTAR TRUCKS
	Vehicle Model	PT5050GWT
	Chassis Brand	ISUZU
	Overall Dimension	5295 * 2000 * 2780 mm
	GVW / Kerb Weight	3295kg / 2170kg
	Wheelbase	3406mm
Cab	Cab Capacity	2+3 persons allowed
	Air Conditioner	Heating/cooling air conditioner
Engine	Fuel Type	Oil
	Engine Brand	ISUZU
	Engine Type	4HK1CT6H1
	Power	143HP
	Displacement	2999 ml
	Emission Standard	Euro 6
Chassis	Drive Type	4X4 (left hand drive)
	Transmission	5-shift speed levers with 1 reverse
	No. of axle	2
	Tire Specification	245/70 R17LT
	Tire Number	4 tires
	Max Speed	140 km/h
	Paint	Metallic paint
Fire performance	Tank Capacity	1,000L water
	Tanker Material	Carbon Steel
		Pump Model:	JBQ4.5/9
		Flow Rate	≥600L/min
		Exhaust Rate	390ml
		Engine Model	188F/GX390
		Max.Power	9.6Kw/13HP
		Engine speed	3600r/min
		Max pressure	0.65MPa
		Priming Time	≤10s
		Range	60m
	Fire monitor	Water jet distance: ≥60m
	Electronic alarm	LY CJB-100-C24 / 1.2 m long
	Control panel	English or Your language
	All standard accessories: Fire hose, filter, coupling, wrench, water nozzle, basic tool kit, English manual……
Optional	** Back alarm and Camera can be equipped. ** Standard carbon steel, stainless steel optional. ** USA or Germany fire pump can be optional

The Isuzu 4WD fire department firefighting pickup is equipped with an efficient fire pump and a large-capacity water tank, which can quickly deliver water to the fire scene and effectively control the fire through high-pressure spraying through a variety of water spraying equipment.



The combination of the four-wheel drive system and the professional chassis enables this fire truck to maintain a stable driving speed and maneuverability even in the face of muddy, rugged and other complex terrains, ensuring that firefighters can quickly reach the fire scene. Its payload capacity enables the transportation of important firefighting equipment and personnel, which is crucial to effectively alleviate crises.



The overall structural design of the vehicle is reasonable, with a low center of gravity and good stability during driving, and it can maintain a good posture even during high-speed driving and firefighting operations.



 Isuzu 4WD fire department pickup fire truck

The Isuzu 4x4 drive fire department firefighting pickup truck stands as a versatile and essential tool within the firefighting arena, blending agility, power, and specialized features to effectively combat emergencies in diverse environments. It has the following features:

High mobility: The compact design of the pickup truck and the blessing of the four-wheel drive system enable this fire truck to easily shuttle through city streets, country roads, and complex terrains such as mountains and forests, and quickly approach the fire scene. It is equipped with powerful off-road capabilities and is a steadfast partner during emergency response. Customized firefighting equipment adorns its cabin, enhancing its readiness to effectively extinguish fires. Its compact size facilitates movement in narrow spaces, which is a boon for densely populated urban environments.

T

Isuzu 4x4 fire department emergency rescue pickup fire engine

Versatility: The interior of the vehicle is equipped with a complete firefighting system, including water tanks, fire pumps, and a variety of water spraying equipment, which can be flexibly configured according to different fire types to achieve efficient firefighting.



Sturdy and durable: The body is made of high-strength materials, and key components are specially treated to ensure long-term stable operation in harsh environments.



Humanized design: The interior space layout is reasonable, the number of passenger seats is moderate, and the field of vision is wide, which is convenient for the driver and firefighters to operate and command. At the same time, the vehicle is also equipped with advanced monitoring systems and communication equipment to ensure the timeliness and accuracy of information transmission.

Isuzu 4x4 fire department pickup fire engine

Isuzu 4x4 fire department fire tender pickup

This Isuzu 4x4 drive fire brigade pickup fire engine, as a high-performance special vehicle designed for fire brigades, has a wide range of uses and is important, mainly reflected in the following aspects:

1.Quick response and fire extinguishing

First of all, its most important and direct use is to quickly respond to fire alarms and quickly arrive at the fire scene to carry out fire extinguishing operations. With its excellent 4x4 four-wheel drive system and high mobility, this fire truck can easily cross complex terrains such as urban congested roads, rural roads and rugged mountains, ensuring that firefighters can reach the fire scene as soon as possible. After arriving, through its high-efficiency fire pumps, large-capacity water tanks and a variety of water spraying equipment, firefighters can accurately and efficiently extinguish the fire source, effectively control the spread of the fire, and protect people's lives and property.

2. Rescue operation support

In addition to the direct fire extinguishing function, this fire truck is also often used in various emergency rescue operations. In natural disasters or emergencies such as earthquakes, mudslides, and traffic accidents, it can be used as part of the rescue force to quickly go to the scene to provide necessary support and help. For example, in traffic accidents, it can be used to clean up the scene and rescue trapped people; in earthquake-stricken areas, it can assist in building temporary shelters and transporting relief supplies.

Isuzu 4WD drive fire brigade pickup fire engine

3. Fire propaganda and education

In addition, this fire truck is often used in fire propaganda and education activities. Fire brigades can use it as a mobile propaganda platform to popularize and educate fire safety knowledge in communities, schools, enterprises and other places. By displaying firefighting equipment, demonstrating the firefighting process, and explaining fire prevention knowledge, the public's awareness of fire safety can be improved and their ability to rescue themselves and each other can be enhanced.

4. Responding to special fire types

For different types of fires, this fire truck can also be flexibly configured and adjusted. For example, for flammable liquid fires such as petroleum and chemicals, it can be equipped with a foam fire extinguishing system; for high-rise building fires, it can be equipped with remote fire extinguishing equipment such as high-altitude water cannons. This flexibility and versatility enable it to cope with various complex and changing fire situations and ensure the smooth progress of firefighting and rescue work.

5. Collaborative operations and command and dispatch

In large fires or complex rescue operations, this fire truck can also be used as an important tool for collaborative operations and command and dispatch. It can maintain real-time contact with the command center through on-board communication equipment, transmit fire scene conditions, receive instructions and coordinate other rescue forces for joint operations. At the same time, it can also be used as an on-site command vehicle to provide clear operational guidance and decision-making support for firefighters.

Isuzu all-wheel drive fire department pickup fire tender

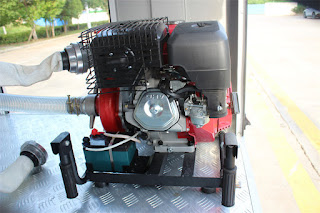

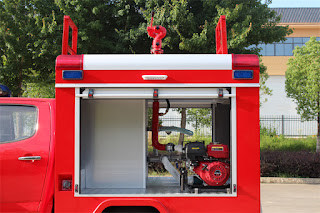

Fire pump and pipeline of Isuzu 4x4 fire truck pickup
