Isuzu 100P sewage vacuum pump truck for Philippines

Isuzu 100P sewage vacuum pump truck is a large-scale mechanical equipment specially used to clean dirt on roads, blocks and other places. It mainly sucks dirt into the vehicle through suction and stores or processes it after special treatment and treatment.The truck is based on type II ISUZU 4*2 Left Hand Drive chassis, capacity for vacuum tank can be up to 4000 Liters.

Products Description

 Isuzu 100P sewage vacuum pump truck for Philippines also called Isuzu vacuum sewage suction truck, Isuzu mini vacuum tank truck, Isuzu sewage disposal trucks, Isuzu sewer tanker truck, Isuzu septic suction truck, Isuzu vacuum cleaner truck ,Isuzu vacuum suction truck,Isuzu sewage suction truck,Isuzu sewage vacuum truck ,Isuzu waste vacuum truck ,Isuzu sewer truck ,Isuzu cesspit emptier,etc.The Isuzu 100P sewage vacuum pump truck for Philippines is a new type of sanitation vehicle that collects, transfers, cleans and transports sludge and sewage to avoid secondary pollution. The sewage suction truck can self-prime and discharge. It has fast working speed, large capacity and convenient transportation. It is suitable for collecting and transporting feces and mud, crude oil and other liquid substances.

I. Description of Isuzu 100P Sewage Vacuum Pump Truck For Philippines

Key Features:

----Multi-functional,simple operation and easy maintenance.

----Sewage tank volume from 3000L to 25000L.

----Tank material can be Carbon steel,Stainless steel or Aluminum alloy.

----Super powerful vacuum pump,efficient pump in and pump out.

Isuzu 100P sewage vacuum pump truck for Philippines adopts domestic technology-leading sewage suction truck vacuum pump, which has large suction power and long suction range. It is especially suitable for suction, transportation and discharge of sludge in sewers, especially it can suck sewer mud, silt, stones, Larger objects such as bricks.

Technical Parameter

II. Specification of Isuzu 100P Sewage Vacuum Pump Truck For Philippines

Vehicle Parameter
Vehicle Name	ISUZU NKR vacuum tanker truck
Vehicle model	PT5060GXW
Overall dimension (mm)	5900x2200x2400
Sewage tank (L)	5000
Gross vehicle weight (kg)	7300
Curb weight (kg)	4200
Chassis Parameter
Cabin	ELF, single row,power steering, air conditioner, with A/C 2 passengers,left hand drive
Drive form	4×2
Wheel base (mm)	3360
Max speed (km/h)	90
Engine	Brand	ISUZU
	Model	4KH1CN5LS
	Power	98HP/72KW
	Displacement	2999ml
	Emission standard	Euro 5/6
	Torque	220N.m
Transmission	ISUZU MSB,5 forward,1 reverse, manual operated
Tire model	7.00R16
No.of tires	6pcs, with 1pc spare tire
Superstructure Parameter
Characteristic	1. Sewage tank volume 4000 liter.
	2. Sewage tank material is carbon steel,thickness 6mm.
	3. Sewage suction pipe 1pcs, length 7m.
	4. Hydraulic lifting sewage tank,rear cover can open.
	5. Equipped with PTO.
	6. Equipped with vacuum pump.
	7. Equipped with oil water separator, overflow valve,looking sewage window, self flow exit, hand washing device.
Performance	(1) Vertical suction ≥ 7m.
	(2) Pumping speed : 45L/s.
	(3) Intake and exhaust diameter: 50mm.
	(4) Full tank pumping time ≤ 5min.
	(5) Sewage tank emptying time ≤ 4min.

III. Details of Isuzu 100P Sewage Vacuum Pump Truck For Philippines

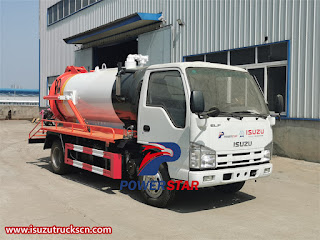

●  Philippine Isuzu 100P sewage vacuum pump truck photos for reference

Isuzu 100P sewage vacuum pump truck for Philippines is a special vehicle used to suck, transport and move sludge and sewage in sewers, rainwater wells and sedimentation wells. It can greatly reduce the labor intensity of municipal workers' heavy and dangerous sewer construction operations and protect them from toxic gas hazards.

The vehicle is not only a necessary construction equipment for sewer cleaning of the municipal sanitation department, but also can be used as a working tool for pumping, transporting and transferring sewage, oil and waste water from large factories and mines. It can also be used as dredging equipment for streams and rivers.

Technical drawing of Isuzu 100P sewage vacuum pump truck

The special part of Philippine Isuzu 100p sewage vacuum pump truck is composed of power take-off, transmission shaft, vacuum suction pump, pressure tank, hydraulic part, pipe network system, vacuum pressure gauge, feces viewing window, hand washing device, etc. The vehicle is equipped with high-power vacuum suction Sewage pump and high-quality hydraulic system, the tank head is die-cast in one step, the tank can be opened backwards, and the double top is self-unloading. The dirt in the tank can be poured directly through the back cover.The Isuzu sewage suction trucks have the characteristics of high suction efficiency, self-priming, self-draining and direct irrigation. They also have high vacuum (greater suction power than fecal suction trucks), large tonnage, fast working speed, easy operation, high efficiency and convenient transportation. Convenience and wider use.

Structure of Isuzu 100P sewage vacuum pump truck

The working principle of the Philippine Isuzu 100P sewage vacuum pump truck mainly includes three steps: suction, filtration and storage:

1.the sewage suction truck sucks the waste into the vehicle's sewage storage tank through the suction device. This suction device usually consists of a vacuum pump and a suction pipe. The vacuum pump uses the principle of negative pressure to pump sludge and waste into the vehicle. The suction line is connected to the side of the suction unit and draws waste into the vehicle through a pipe or device that taps into the source contaminant. During the suction process, waste will be forced into the sewage storage tank due to the negative pressure of the suction device.

2.the sludge and waste sucked in will be processed through the filtration system. Filtration systems generally consist of multi-layer filters and sedimentation tanks. The filter blocks larger particles and solids in the waste while allowing liquids to pass through. This can effectively separate solids and liquids, allowing solid substances to settle on the filter screen. The sedimentation tank is used to collect and store sediment for subsequent processing.

3. the sewage suction truck will store the treated liquid in the vehicle’s reservoir. The reservoir is usually located under the vehicle and has a sealing cover to prevent leaks. The liquid storage tank has a certain capacity and can accommodate a large amount of waste. When the tank is full, the sewage suction truck needs to go to a sewage treatment facility or other treatment site for unloading and treatment.

To sum up, the Isuzu 100P sewage vacuum pump truck for Philippines sucks sludge and waste into the sewage storage tank through the suction device, and then processes it through the filtration system, and finally stores the treated liquid in the liquid storage tank. This working principle makes the sewage suction truck a special equipment for efficient cleaning and processing of waste.
