Isuzu ELF NPR 700P cargo truck chassis

 Isuzu ELF NPR 700P cargo truck chassis, to be mounted with 4KH1-TCG61 diesel engine, with engine power 190HP, 4 Cylinders in line, turbo charging, inter cooling, high pressure common-rail diesel injection system, liquid-cooled engine. 4x2 LHD truck drive model with front axle 4tons and rear axle 7tons. The engine has strong power, low fuel consumption, reliable and durable. Recognized for its outstanding combination of economy, safety, reliability and durability, it is a very popular light truck in many countries.

Isuzu ELF NPR 700P cargo truck chassis, also known as Isuzu 700P 4X2 cabin truck,Isuzu NPR truck chassis, has won wide acclaim in the field of cargo transportation for its outstanding performance and stability. This chassis is strong and durable, carrying the fine craftsmanship and excellent quality of the Isuzu brand. The Isuzu ELF NPR 700P cargo truck chassis is designed to efficiently handle large quantities of cargo. It supports the installation of different types of bodies, such as flatbed trucks, vans, refrigerated trucks, etc., to meet a wide range of transportation needs.

The chassis is exquisitely designed and compact, which not only ensures the overall stability of the vehicle, but also optimizes the cargo space, allowing it to carry more cargo. The steel is of high quality, and undergoes precision welding and heat treatment processes to ensure that the chassis can still maintain excellent durability and safety under high-strength and high-load working conditions.

In addition, the suspension system of the Isuzu ELF NPR 700P cargo truck chassis has also been carefully adjusted to ensure smooth driving while effectively absorbing the impact and vibration from the road, improving driving comfort. At the same time, its braking system has also been optimized to ensure rapid and effective braking in emergency situations to ensure driving safety.

Isuzu ELF NPR 700P cargo truck chassis
Chassis Model	Isuzu 700P
Driving Type	Left Hand Drive
Overall Dimension（L*W*H）	6980*2170*2410mm
GVW	10000Kg
Curb Weight	3380Kg
Axle loading:	3350/6650Kg
Wheelbase	3815mm
F/R Track	1680/1650mm
Approaching Angle/Departure Angle(o)	20/17
Tire No.	7(Including Spare Tire)
Tire	825R20 14PR
Color:	Optional
Max Speed（Km/h）	110Km/h
Engine
Engine System	4 Stroke, High Pressure Common Rail, Inter-cooling Turbo-Charged, 4 Cylinders
Emission Route	DPF
Model	4HK1-TCG61
Fuel Type	Diesel Engine
Max output	139Kw
Horsepower：	190HP
Max Torque	507N.m/2600rpm
Emission Standard	Euro V
Displacement:	5193ml
Transmission:
Model:	MLD-6Q
Type	Manual
Forward/Reverse	6F/1R
Brake System:
Service Brake	Dual Circuit Compressed Air Brake
Parking Brake	Spring Energy, Compressed Air Operating on Rear Wheels
Auxiliary System	Engine Exhaust Brake
Electrical System
Battery	2*12-70Ah
Alternator	28V-70Ah
Starter	24V/7.5Kw
Cabin
Single Cabin with Air Conditioner
Other Equipment:
Power Steering, ABS, Maintenance Free Battery, Retro-reflective marking

Isuzu ELF NPR 700P cargo truck chassis has a wide range of application scenarios, and its excellent performance and stability make it suitable for a variety of logistics and operating environments. The following is a specific application scenario analysis:

1. Logistics and transportation:

● Cargo transportation: With its strong load-bearing capacity and excellent stability, the 700P cabin truck can carry a large amount of cargo for long-distance transportation, meeting the diverse needs of the logistics industry.

● Urban distribution: The flexibility and efficiency of the chassis make it perform well in urban distribution. It is suitable for cargo procurement and distribution tasks in hotels, supermarkets, shops and other places, and can complete cargo distribution tasks quickly and accurately.

2. Construction site:

● Building materials transportation: The ELF NPR 700P 4x2 chassis can carry various building materials, such as cement, sand and stone, and provide stable transportation support for construction sites.

● Construction site operations: The chassis's durability and excellent performance also make it a powerful assistant for construction site operations, such as lifting equipment, earthwork transportation, etc.

3. Agricultural transportation:

Agriculture and agricultural products: It can be used in the harvest season in the agricultural field to transport agricultural products and farm tools. The stability and large capacity of the chassis can meet the transportation needs of different agricultural products.

Isuzu 4x2 700P cargo truck chassis

Here are technical drawings of Isuzu 700P chassis:

Technical drawings of Isuzu 700P wheelbase 3815mm chassis

Technical drawings of Isuzu 700P wheelbase 4175mm chassis

Technical drawings of Isuzu 700P wheelbase 4175mm chassis

The chassis of Isuzu ELF NPR 700P cargo truck has excellent performance and has many advantages. The following is a detailed description of its performance:

1. Load-bearing capacity and stability:

● The chassis structure is sturdy and carefully designed and manufactured to ensure stability under high load.

● Strong load-bearing capacity, capable of carrying a large amount of cargo, meeting the diverse needs of logistics and transportation.

2. Durability:

● The use of high-quality steel and advanced production technology makes the chassis have excellent durability.

● Under complex and changing road conditions, the chassis can still maintain excellent performance and extend its service life.

3. Driving comfort:

● The suspension system has been carefully adjusted to effectively absorb the impact and vibration from the road surface and improve driving comfort.

● Equipped with advanced shock absorption technology, the vehicle is more stable during driving and reduces the driver's fatigue.

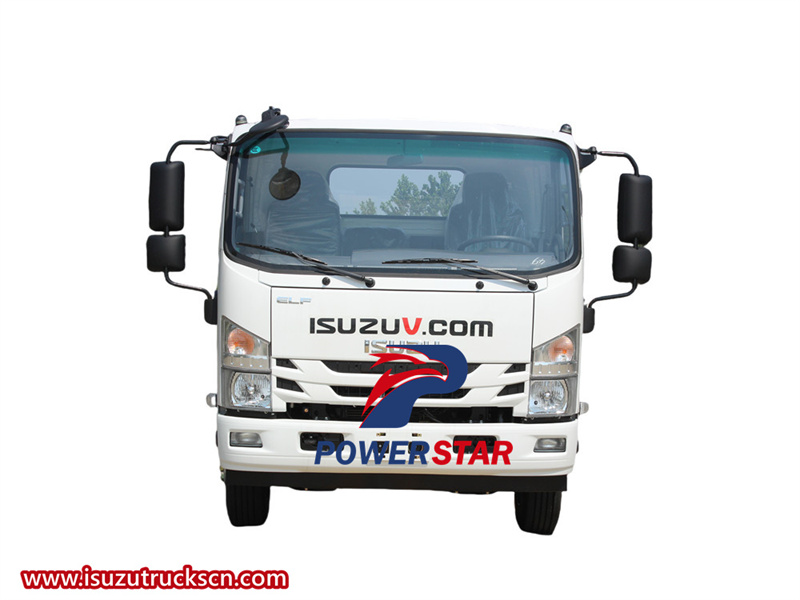

Isuzu 700P chassis front view

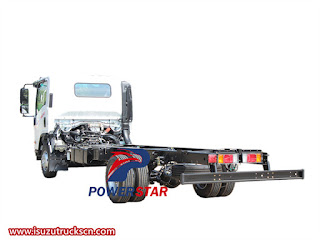

Isuzu 700P chassis rear view

Isuzu 700P chassis steering wheel

Isuzu 700P chassis

4. Safety:

● The braking system has been optimized to ensure rapid and effective braking in emergency situations to ensure driving safety.

● The chassis structure design takes into account the collision energy absorption effect, which can effectively protect the lives of drivers and passengers in the event of a collision.

5. Fuel economy:

● The diesel engine is highly efficient and low-consumption, making the vehicle more economical and fuel-efficient during driving.

● The optimized power system and transmission system further improve fuel utilization and reduce transportation costs.

6. Technical configuration:

● The chassis adopts advanced electronically controlled high-pressure common rail injection technology, which improves the combustion efficiency and power performance of the engine.

● Equipped with multi-layer sealing technology, the noise in the cab is lower and the driving environment quality is improved.

Isuzu NPR 700P cabin truck
