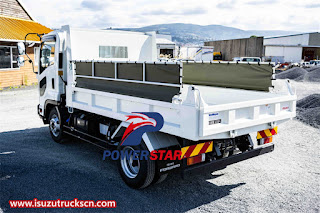

Isuzu 4x2 700P tipper truck

 The Isuzu 4x2 700P tipper truck is a popular choice for transportation and construction purposes. This model offers a durable chassis and a powerful engine suitable for carrying and unloading materials efficiently. The tipper feature allows for easy unloading of goods, making it ideal for construction sites, mining operations, and various other industries requiring material transport.

Isuzu 4x2 700P tipper truck, also called Isuzu 700P dump truck,Isuzu garbage dump vehicle,Isuzu tipper lorry truck,Isuzu off road hook loader, refers to a vehicle that unloads goods by itself through hydraulic or mechanical lifting. The Isuzu 4x2 700P tipper truck is composed of automobile chassis, hydraulic lifting mechanism, cargo compartment and power take-off device. In civil engineering, dump trucks often work together with excavators, loaders, belt conveyors and other engineering machinery to form a loading, transporting and unloading production line to carry out the loading and unloading of earthwork, sand and gravel, and bulk materials.

Features:

1.Using Japanese technology ISUZU 700P Chassis, super power, larger displacement, with Stronger Engine performance.
2. Remove the urea system and cancel DPF.
3. Quality test from the production to the finish of the whole truck.
4. Professional and experienced technical team support to provide customized trucks with high quality & reasonable price.
5. Genuine spare parts supply.
6.Prompt delivery. All the truck will be polished with wax before shipping and accordingly the truck type and destination port to choose the most suitable and cost-effective shipping way.

1.


Truck Specification
Truck model		PT5050GWR
Cab		Single row cab, with power steering. Electronic flameout
Driving Type		4*2, Right hand driving
Max Speed (km/h)		110
Overall dimension(mm)		6300×2350×2380(mm)
GVW( kg)		7985
Mass in working order ( kg)		3700
Wheelbase(mm)		3360
F/R track base (mm)		1504/1425
F/R overhang (mm)		1015/1815
Approach/Departure Angel		24/14
Tire		7.00-16,7.00R16
Clutch		Single-plate dry diaphragm spring clutch
Steering		Hydraulic steering with power assistance
Gear box		MLD 6-speed
Bridge	Front axle	4 T
	Rear axle	7 T
Enging	Model	4HK1-TC51
	Fuel Type	Diesel fuel
	Type	Water-cooled four-stroke,, direct injection, turbocharged
	Exhaust(ml)	6193
	Max output power/rotate speed (hp /rpm )	115/3200
	Max torque/rotate speed(N.m/rpm)	300/1600-2400
Braking  system	Service Brake	Compressed air brake
	Park Brake	Spring energy
	Auxiliary brake	engine exhaust brake
Eletric system		24v

Upper-Body  specification
Dump box dimension (L*W*H)(mm)	3800*2250*550
Dump box material	Carbon steel
Dump box thickness (mm) bottom/side	5/4
Hydraulic cylinder	Middle-placed T-Shape cylinder
Dump box color	According to customer's requirement

The Isuzu 4x2 700P tipper truck is a powerful and well-designed heavy-duty transport vehicle. The following is a description of the five main features of this model:

1. Appearance design: The Isuzu 4x2 700P tipper truck has an eye-catching appearance design, and its smooth and powerful lines give people a strong visual impact. Every detail of the car body reflects the product's excellent quality and exquisite craftsmanship. Whether it is the headlight design on the front face or the side lines of the car body, it highlights its unique charm.

2. Power performance: This dump truck is equipped with a powerful Qingling-Isuzu 4HK1-TCG61 engine. The 4-cylinder diesel inline engine with a displacement of 5.19L provides ample power for the vehicle. The maximum horsepower reaches 190 horsepower, and the drive mode is 4X2, which can meet various complex road conditions and transportation needs.

3. Control and comfort: The Isuzu 4x2 700P dump truck not only has stable control, but also has a very user-friendly cab design. The spacious driving space and high-quality seats allow drivers to enjoy a comfortable driving experience. In addition, the vehicle is equipped with advanced suspension systems and shock-absorbing technology, which effectively reduces vibration and noise during driving.

4. Loading and unloading capacity: As a dump truck, its cargo box length can reach 3.82 meters (depending on different configurations) and has excellent loading capacity. At the same time, the self-unloading function makes the unloading process faster and more convenient, greatly improving work efficiency.

5. Economy and environmental protection: The Isuzu 4x2 700P dump truck performs well in terms of fuel economy and has lower fuel consumption compared with vehicles of the same level. In addition, the vehicle also adopts advanced emission control technology, complies with National VI emission standards and is environmentally friendly.
