Nigeria Isuzu 5 cbm cesspit emptier

 Nigeria Isuzu 5 cbm cesspit emptier adopts Isuzu 100P chassis, flat-head all-metal enclosed cab, Isuzu 98HP 721kw engine, National VI emission standard, 3360 wheelbase, 7.00-16 steel tires, with power steering, ABS. The tank body adopts national standard 6mm Made of high-quality carbon steel plate, tank volume: 5 m3. Equipped with a high-power vacuum sewage suction pump, with a direct suction distance of >6 meters.

Nigeria Isuzu 5 cbm cesspit emptier also called Isuzu vacuum sewage suction truck, sewage vacuum pump truck,Isuzu mini vacuum tank truck, Isuzu sewage disposal trucks, Isuzu sewer tanker truck, Isuzu septic suction truck, Isuzu vacuum cleaner truck ,Isuzu vacuum suction truck,Isuzu sewage vacuum truck ,Isuzu waste vacuum truck ,Isuzu sewer truck ,Isuzu sewer disposal vehicle ,etc.

The Nigeria Isuzu 5 cbm cesspit emptier is used for removing and transporting sand, stones, grease, sludge and other debris from sewage pipelines and / or sanitary sewer by vacuum suction pump.

The Nigeria Isuzu 5 cbm cesspit emptier is mounted on a suitable Isuzu 4×2 100P chassis . The sewage truck is cost-effective and has good performance in short-distance transportation. The steering system is available for both Left Hand Drive and Right-Hand Drive models.

Vehicle Parameter
Vehicle	ISUZU 4x2 5 cbm cesspit emptier
Overall dimension (mm)	5960x1950x2550
Sewage tank (m3)	5
Gross vehicle weight (kg)	7300
Curb weight (kg)	3280
Wheel base (mm)	3360
Max speed (km/h)	98
Chassis Parameter
Cabin	Single row, power steering,2 passengers,left hand drive,with A/C
Drive form	4×2
Engine	Brand: ISUZU Model: 4JB1CN, 98hp Type: diesel, turbocharged, 6 cylinder. Displacement: 2771ml Emission standard: Euro 5/6
Transmission	MSB 5 forward,1 reverse, manual operated
Tire model	7.00-16
No.of tires	6pcs, with 1pc spare tire
Superstructure Parameter

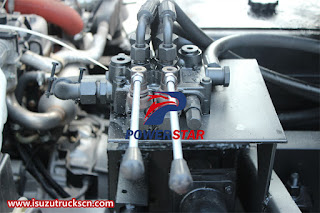

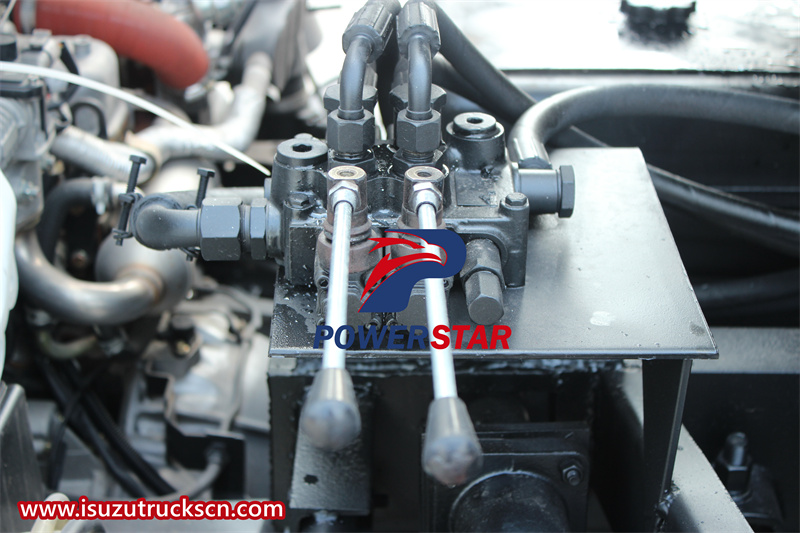

Characteristic	1. Sewage tank volume 5000 liter. 2. Sewage tank material is carbon steel,thickness 6mm. 3. Sewage suction pipe 1pcs, length 7m. 4. Hydraulic lifting sewage tank,rear cover can open. 5. Equipped with PTO. 6. Equipped with vacuum pump. 7. Equipped with oil water separator, overflow valve,looking sewage window, self flow exit,hand washing device.
Performance	(1) Vertical suction ≥ 7m. (2) Pumping speed : 45L/s. (3) Intake and exhaust diameter: 50mm. (4) Full tank pumping time ≤ 5min. (5) Sewage tank emptying time ≤ 4min.

The Nigeria Isuzu 5 cbm cesspit emptier is a kind of cleaning equipment used to clean various liquid garbage and sewage. Its main function is to collect and transport sewage and garbage to the treatment base. Common liquid waste includes sewers, road rainwater, septic tanks, domestic sewage, etc. Isuzu 5 cbm cesspit emptier play a very important role in urban environmental sanitation and can effectively reduce the pollution and health problems caused by garbage to the urban environment.

Technical drawing of Nigeria Isuzu 5 cbm cesspit emptier

Nigeria Isuzu 5 cbm cesspit emptier is a large-scale mechanical equipment specially used to clean pollutants on roads, neighborhoods and other places. It mainly sucks dirt into the interior of the vehicle through suction and stores or disposes it after special treatment and treatment. The working principle of the sewage suction truck is as follows:

1. Suction system: The main working principle of the  Isuzu 5 cbm cesspit emptier is to suck dirt into the vehicle through powerful suction. Vehicles are usually equipped with a vacuum pump or compressor, which generates suction to pump sewage, solid waste, etc. into the storage tank or tank.

2. Storage room: The Isuzu 5 cbm cesspit emptier has a specially designed storage room for storing sucked dirt. Vehicle storage compartments are usually made of a special material that can hold large amounts of dirt and are designed to prevent leaks. The extracted sewage, solid waste, etc. will be temporarily stored in the vehicle's liquid storage tank or tank. These tanks generally have strong sealing properties to avoid leakage. Prevent further pollution to the environment.

3. Treatment system:Isuzu 5 cbm cesspit emptier are mainly used to clean dirt in roads, sewers, septic tanks and other places. Some sewage suction trucks are also equipped with a treatment system for treating waste after storing it. The treatment system usually includes filters, separators and cleaning devices. The filter can filter out large particles of dirt, the separator can separate solids and liquids, and the cleaning device can clean and disinfect dirt.

4. Discharge system: After cleaning and processing the sewage, the  Isuzu 5 cbm cesspit emptier needs to safely discharge the waste water and waste. Discharge systems usually consist of liquid discharge pipes and waste disposal devices. Liquid drains are used to discharge wastewater into designated sewage receptacles, while waste disposal units are used to dispose of solid waste, such as by compressing or incineration.

In general, the  Isuzu 5 cbm cesspit emptier sucks the dirt into the storage room through the suction system, then processes it through the treatment system, and finally discharges wastewater and waste safely through the discharge system. This working principle makes the sewage suction truck an efficient and environmentally friendly vehicle. Cleaning equipment is widely used in urban sanitation, municipal construction, industrial pollution control and other fields.



Structure of Nigeria Isuzu 5 cbm cesspit emptier

Isuzu 4x2 5cbm cesspit emptier for Nigeria
