NPR Isuzu double cabin truck chassis

The Isuzu 700P double cabin truck chassis is a versatile, reliable and durable commercial vehicle chassis. It is designed with ride comfort, carrying capacity, performance and stability in mind, and is suitable for a wide range of commercial and transportation needs. Whether it is cargo transportation, passenger transportation or special vehicles, this chassis performs well and is a reliable and trustworthy choice that can provide strong support for users' commercial operations.

The NPR Isuzu double cabin truck chassis also called Isuzu 700P double row cab chassis,Isuzu ELF double cabin light truck chassis,Isuzu 700P double cabin cargo truck chassis,refers to a model that features an NPR chassis from Isuzu with a double cabin configuration. This setup typically includes a cabin designed to accommodate both passengers and the driver comfortably. The double cabin layout allows for increased capacity for transporting personnel along with goods, making it suitable for various commercial and industrial applications.

The NPR Isuzu double cabin truck chassis is known for its durability, reliability, and performance, making it a popular choice for businesses requiring a versatile and robust truck platform. The double cabin design enhances the truck's utility, enabling it to serve multiple purposes effectively while maintaining a balance between passenger comfort and cargo-carrying capability.

Isuzu 700P double cabin truck chassis
Chassis Dimensions and Parameters	Chassis Brand	Isuzu
	Overall Dimension(L x W x H)	7355×2170×2410mm
	Wheelbase:	4175mm
	Front/ Rear Wheel Distance:	1680/1650mm
	Front/Rear Suspension	1110/2070mm
Weights and Capacities	Curb Weight:	3380kg
	Payload:	5250kg
	GVW:	10000kg
	Axle Loads:	4000/7000kg
Engine	Engine Model:	4HK1-TCG61
	Max output:	139Kw
	Displacement:	5193ml
	Horsepower:	190HP
	Exhaust Gas Treatment Technology：	DPF+SCR
Transmission	Transmission:	MLD-6
	Forward Gear:	6 Speed Gear
	Backward Gear:	1 Speed Gear
Brake	Hydraulic Brake
	Front Drum Back Drum
Generator	12V-60A
Cab	Number of Seats:	2+3
Chassis	Drive Type:	4x2
	Tires:	7(Including Spare Tire)
	Tire Model:	235/75R17.5
Fuel Tank	Number:	1
	Capacity:	75L
Configurations:	1	Power Steering System
	2	Air Conditioning
	3	ABS
	4	Tubeless Tire
	5	Retro-reflective Marking
	6	Free Maintenance Battery
	7	Cab Tilting Mechanism

The Isuzu 100P double-row cab chassis is a sturdy and versatile chassis design widely used in commercial transportation. A double-row cab layout is adopted to meet the needs of transporting people and goods at the same time. This chassis produced by PowerStar is known for its reliability, durability and flexibility, and is suitable for a variety of uses and work scenarios.

1. Chassis Features

The Isuzu 100P chassis is solid and reliable, with good stability, which can effectively ensure the integrity of the goods during transportation. The lightweight design makes the vehicle light and can tow large items, which improves transportation efficiency. In addition, the durability of the chassis has also been rigorously tested and can maintain stable performance under various complex road conditions.

Technical drawing of Isuzu 700P double cabin truck chassis

2. Excellent performance

The Isuzu ELF double cabin light truck chassis is equipped with a newly developed 5.193-liter 4HK1 National VI engine, which has been optimized in terms of intake and exhaust systems, combustion systems, etc., to improve environmental protection and economy. At the same time, the low noise and low fuel consumption characteristics of the engine also further reduce the cost of using the vehicle. In addition, the chassis suspension system has been carefully adjusted to provide good ride comfort and handling stability.

3. Design Concept

The design concept of the chassis focuses on versatility and comfort. The double-row seat design makes the transportation of passengers and goods more convenient, while providing a comfortable riding experience. Considering the diverse needs of users, this chassis can also be customized for specific purposes, such as converted into trucks, buses or other special models.

The Isuzu 700P double cabin cargo truck chassis has excellent performance. Its suspension system is well designed, which can effectively absorb bumps and provide a comfortable ride. The power performance is strong and stable, the handling is excellent, and it has good fuel economy, which enables the vehicle to show excellent performance and stability under different road conditions.

Isuzu ELF double cabin light truck chassis

4. Applicable vehicle types

The NPR Isuzu double cabin truck chassis is suitable for a variety of vehicle types, such as trucks, municipal engineering vehicles, municipal sanitation vehicles, emergency rescue vehicles, etc. From cargo transportation to passenger transportation, from special vehicles to emergency rescue vehicles, it can be converted into different types of special vehicles according to needs. Its flexible design and reliability make it an ideal choice for wide use in commercial and industrial fields, providing efficient transportation solutions for different industries.

Isuzu 700P double cabin truck chassis front view

Isuzu 700P double cabin truck chassis rear view

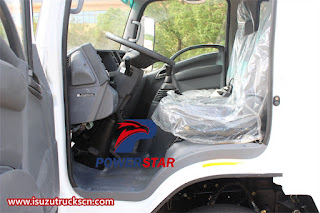

Isuzu 700P double cabin chassis cab steering wheel

Isuzu 700P double cabin chassis cab back seats

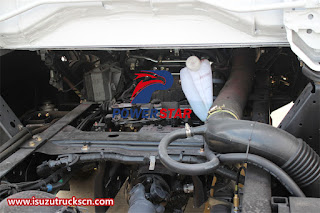

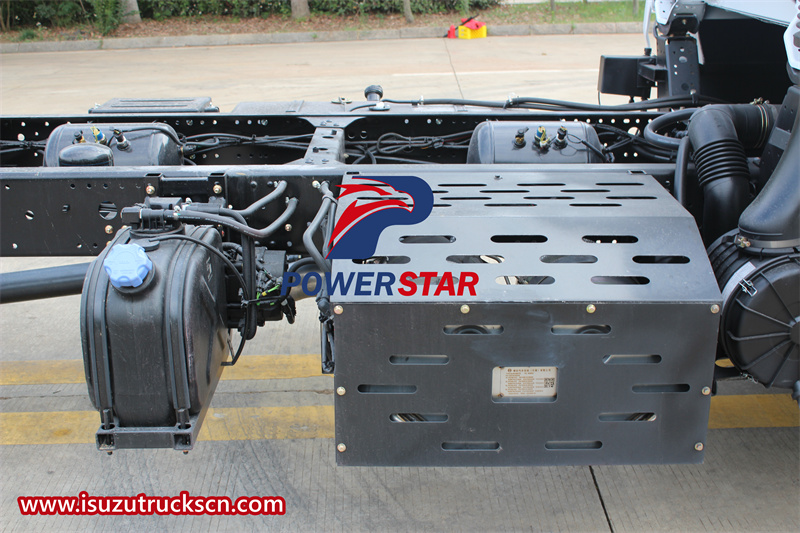

Isuzu 700P double cabin chassis details

Isuzu 700P double cabin chassis details
